ADG636YRUZ-REEL7

Analog Switch Dual SPDT 14Pin TSSOP T/R

Product Details

The ADG636 is a monolithic device, comprising two indepen-dently selectable CMOS single pole, double throw SPDT switches. When on, each switch conducts equally well in both directions.

The ADG636 operates from a dual ±2.7 V to ±5.5 V supply, or from a single supply of +2.7 V to +5.5 V.

This switch offers ultralow charge injection of ±1.5 pC over the entire signal range and leakage current of 10 pA typical at 25°C. In addition, it offers on resistance of 85 Ω typical, which is matched to within 2 Ω between channels. The ADG636 also has low power dissipation yet is capable of high switching speeds.

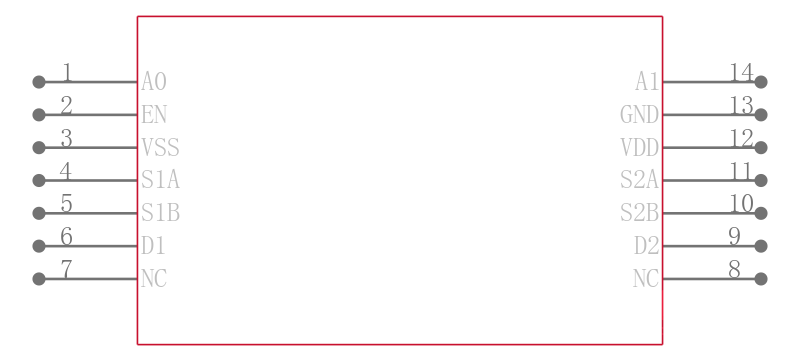

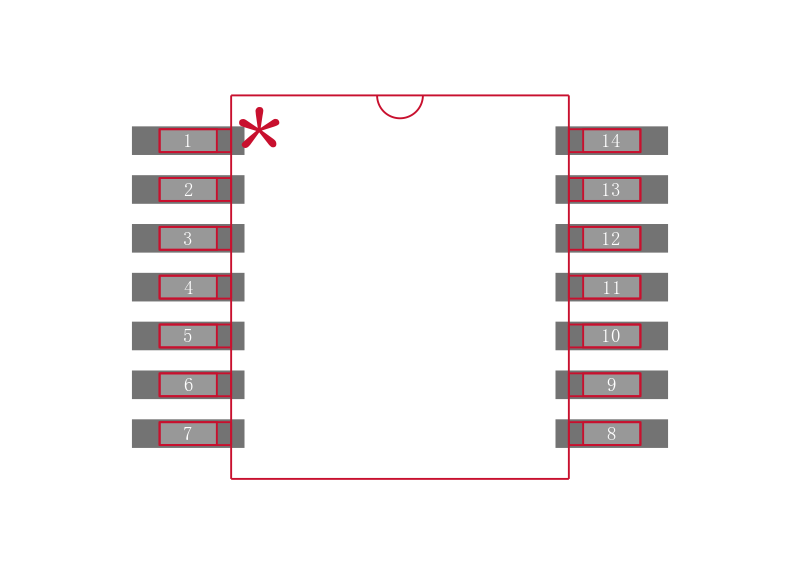

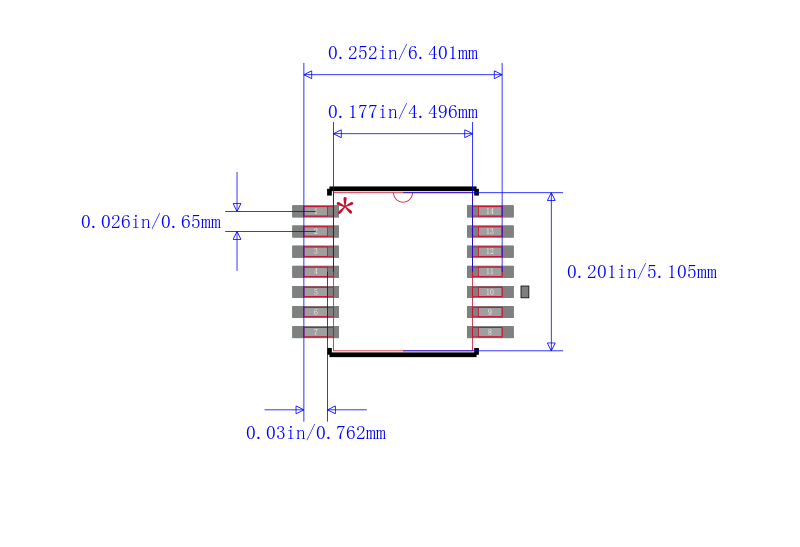

The ADG636 exhibits break-before-make switching action and is available in a 14-lead TSSOP package.

**Product Highlights**

1. Ultralow charge injection. QINJ: ±1.5 pC typical over the full signal range

2. Leakage current <0.25 nA maximum at 85°C

3. Dual ±2.7 V to ±5 V or single +2.7 V to +5.5 V supply

4. Automotive temperature range: −40°C to +125°C

5. Small 14-lead TSSOP package

**Applications**

.

Automatic test equipment

.

Data acquisition systems

.

Battery-powered instruments

.

Communication systems

.

Sample-and-hold systems

.

Remote-powered equipment

.

Audio and video signal routing

.

Relay replacement

.

Avionics

### Features and Benefits

.

1 pC Charge Injection

.

±2.7 V to ±5.5 V Dual Supply

.

+2.7 V to +5.5 V Single Supply

.

Automotive Temperature Range:

–40°C to +125°C

.

100 pA Maximum @ 25°C Leakage Currents

|

.

85 Ω Typical On Resistance

.

Rail-to-Rail Operation

.

Fast Switching Times

.

Typical Power Consumption <0.1 µW

.

TTL/CMOS Compatible Inputs

.

14-Lead TSSOP Package

---|---
