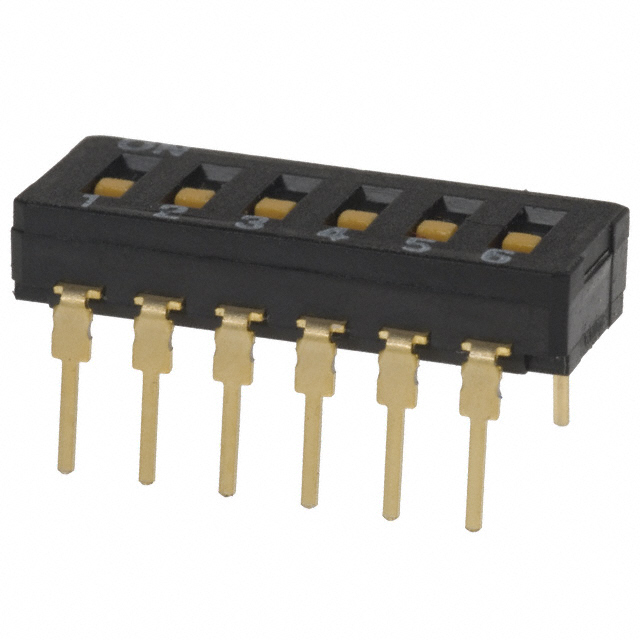

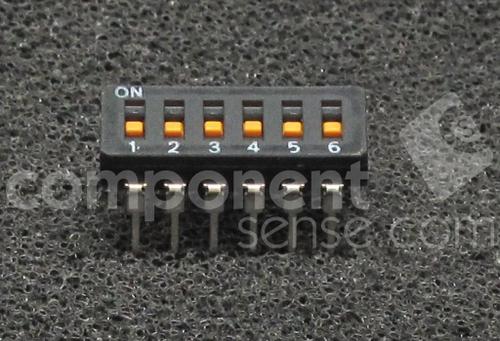

A6D-6100

DIP 开关系列印刷电路板通孔安装 符合 RoHs 镀金双触点，自清洗 平稳，转换作用可靠 触点电阻：100mΩ max 绝缘电阻：100MΩ 最小 @ 250V 直流 机械寿命：5 x 103 ### 注除非另有说明，否则这些开关不适于浸泡清洗。### DIL 直通板

防尘滑动

防尘结构高性能 DIP 开关系列

印刷电路板通孔安装

符合 RoHs

镀金双触点，自清洗

平稳，转换作用可靠

触点电阻：100mΩ max

绝缘电阻：100MΩ 最小 @ 250V 直流

机械寿命：5 x 103

### 注

除非另有说明，否则这些开关不适于浸泡清洗。

得捷:
SWITCH SLIDE DIP SPST 30MA 30V

欧时:
DIP switch top flush actuators, 6 way

立创商城:
开关

贸泽:
DIP 开关/ SIP 开关 6 PIN SEALED TOP ACT

艾睿:
Add current flow control to your printed circuit simply through the use of Omron&s;s A6D6100 dual in-line package switch. This device has a maximum current rating of 0.03 A @ 30VDC. It has a SPST configuration. This DIP switch has a minimum operating temperature of -20 °C and a maximum of 70 °C. The A6D6100 DIP switch has a PC pin termination style. This product is 17.3 mm long, 4.4 mm tall and 7.62 mm deep. This product&s;s terminal pitch is 2.54 mm. The maximum DC voltage rating is 30 VDC.

Chip1Stop:
Switch DIP OFF ON SPST 6 Top Slide 0.1A 30VDC PC Pins 5000Cycles 2.54mm Thru-Hole Tube

TME:
Switch: DIP-SWITCH; Poles number:6; ON-OFF; 0.03A/30VDC; -20÷70°C

Verical:
Switch DIP OFF ON SPST 6 Flush Slide 0.03A 30VDC PC Pins 5000Cycles 2.54mm Thru-Hole Tube

MASTER:
Switch DIP OFF ON SPST 6 Flush Slide 0.03A 30VDC PC Pins 5000Cycles 2.54mm Thru-Hole Tube

Electro Sonic:
Switch DIP OFF ON SPST 6 Flush Slide 0.03A 30VDC PC Pins 5000Cycles 2.54mm Thru-Hole Tube
