CMOS 1.8 V至5.5 V , 2.5升© 2 : 1多路复用器,采用SOT -23 / SPDT开关 CMOS 1.8 V to 5.5 V, 2.5 Ω 2:1 Mux/SPDT Switch in SOT-23
Product Details
The ADG719 is a monolithic CMOS SPDT switch. This switch is designed on a submicron process that provides low power dissipation yet gives high switching speed, low on resistance, and low leakage currents.
The ADG719 can operate from a single-supply range of 1.8 V to 5.5 V, making it ideal for use in battery-powered instruments and with the new generation of DACs and ADCs from Analog Devices, Inc.
Each switch of the ADG719 conducts equally well in both directions when on. The ADG719 exhibits break-before-make switching action.
Because of the advanced submicron process, −3 dB bandwidths of greater than 200 MHz can be achieved.
The ADG719 is available in a 6-lead SOT-23 package and an 8-lead MSOP package.
The ADG719-EP supports Military and Aerospace Applications.
**PRODUCT HIGHLIGHTS**
1. 1.8 V to 5.5 V Single-Supply Operation. The ADG719 offers high performance, including low on resistance and fast switching times, and is fully specified and guaranteed with 3 V and 5 V supply rails.
2. Very Low RON 4 Ω Max at 5 V and 10 Ω Max at 3 V. At 1.8 V operation, RON is typically 40 Ω over the temperature range.
3. Automotive Temperature Range: −40°C to +125°C.
4. On Resistance Flatness RFLATON 0.75 Ω typ.
5. −3 dB Bandwidth > 200 MHz.
6. Low Power Dissipation. CMOS construction ensures low power dissipation.
7. Fast tON/tOFF.
8. Tiny, 6-lead SOT-23 and 8-lead MSOP packages.
**Applications**
### Features and Benefits
tON12 ns
tOFF6 ns
ADG719-EP supports defense and aerospace applications AQEC standard
电源电压DC 5.50V max
输出接口数 2
触点类型 SPDT
供电电流 1 nA
电路数 1
通道数 1
漏源极电阻 2.50 Ω
位数 1
耗散功率 0.282 W
带宽 200 MHz
输入数 1
工作温度Max 125 ℃
工作温度Min -40 ℃
3dB带宽 200 MHz
耗散功率Max 282 mW
电源电压 1.8V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 6

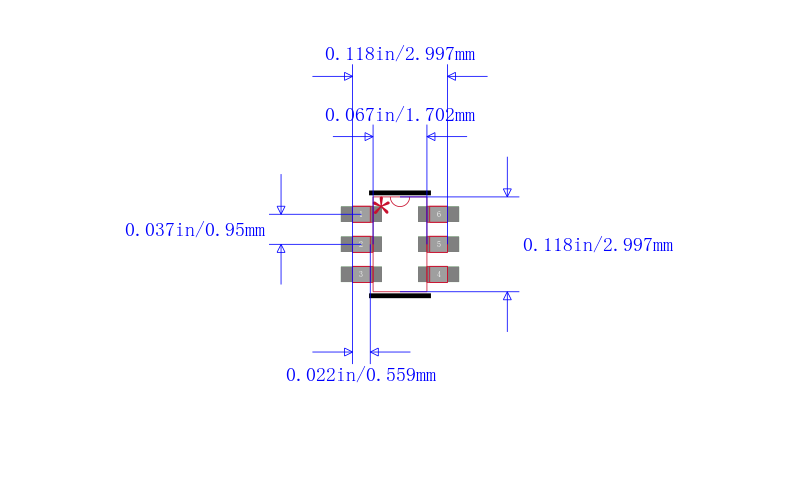

封装 SOT-23-6
长度 2.9 mm
宽度 1.6 mm
高度 1.15 mm
封装 SOT-23-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADG719BRT-REEL7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADG719BRTZ-500RL7 亚德诺 | 完全替代 | ADG719BRT-REEL7和ADG719BRTZ-500RL7的区别 |
ADG719BRT-500RL7 亚德诺 | 完全替代 | ADG719BRT-REEL7和ADG719BRT-500RL7的区别 |
