ADG731BSUZ

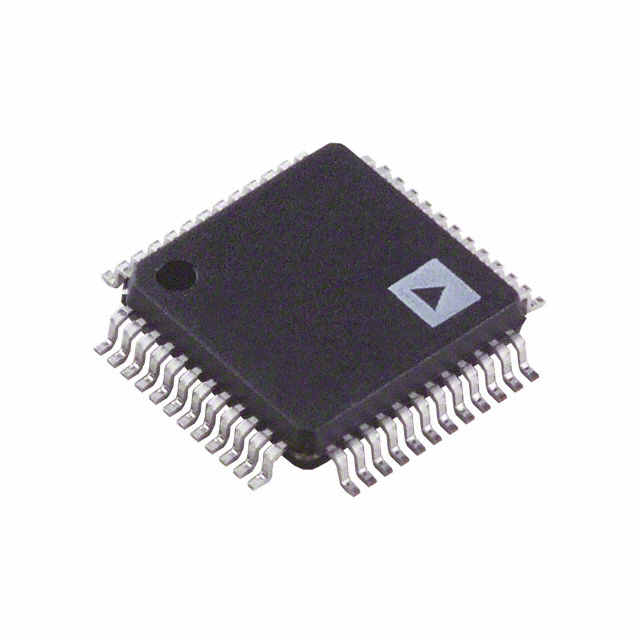

ANALOG DEVICES  ADG731BSUZ.  芯片, 模拟多路复用器, 双路 16X1 TQFP48

双电源 ±2.5V，Analog Devices

低接通电阻

低失真

高速切换

低泄漏

低功率

得捷:
IC MULTIPLEXER 32X1 48TQFP

立创商城:
ADG731BSUZ

欧时:
Analog Devices ADG731BSUZ 多路复用器, 单 32:1, 3 V 5 V电源, 48引脚 TQFP封装

贸泽:
多路复用开关 IC 1.8V to 5.5V, 32:1 MUX with SPI I/F I.C.

e络盟:
芯片, 1.8V至5.5V, 32:1多路复用器, 带SPI串行接口

艾睿:
Analog Multiplexer Single 32:1 48-Pin TQFP Tray

安富利:
The ADG731 is a monolithic, CMOS, 32-channel/ dual 16-channel analog multiplexers with a serially controlled 3-wire interface. The ADG731 switches one of 32 inputs S1-S32 to a common output, D. The ADG725 can be configured as a dual mux switching one of 16 inputs to one output, or a differential mux switching one of 16 inputs to a differential output.These mulitplexers utilize a 3-wire serial interface that is compatible with SPI®, QSPI™, MICROWIRE™, and some DSP interface standards. On power-up, the Internal Shift Register contains all zeros and all switches are in the OFF state.These multiplexers are designed on an enhanced submicron process that provides low power dissipation yet gives high switching speed with very low on resistance and leakage currents.They operate from a single supply of 1.8 V to 5.5 V or a ±2.5 V dual supply, making them ideally suited to a variety of applications. On resistance is in the region of a few ohms, is closely matched between switches, and is very flat over the full signal range.These parts can operate equally well as either multiplexers or demultiplexers and have an input signal range that extends to the supplies. In the OFF condition, signal levels up to the supplies are blocked. All channels exhibit break-before-make switching action, preventing momentary shorting when switching channels.The ADG731 is serially controlled 32-channel, and dual/differential 16-channel multiplexers, respectively. They are available in either a 48-lead LFCSP or TQFP package.

Chip1Stop:
Analog Multiplexer Single 32:1 48-Pin TQFP Tray

Verical:
Analog Multiplexer Single 32:1 48-Pin TQFP Tray

Newark:
Analogue Multiplexer / Demultiplexer, 32:1, 1, 5.5 ohm, 1.8V to 5.5V, 2.5V, TQFP, 48

罗切斯特:
Single-Ended Multiplexer, 1 Func, 32 Channel, CMOS, PQFP48

Win Source:
IC MULTIPLEXER 32X1 48TQFP
