ANALOG DEVICES ADG824BCPZ-REEL7 模拟开关, 双通道, SPDT, 2 放大器, 0.8 ohm, 1.65V 至 3.6V, LFCSP, 10 引脚
Product Details
The ADG824 is a low voltage CMOS device containing two independently selectable single-pole, double throw SPDT switches. This device offers ultralow on resistance of less than 0.85 Ω over the full temperature range. The ADG824 is fully specified for 3.3 V, 2.5 V, and 1.8 V supply operation.
Each switch conducts equally well in both directions when on, and has an input signal range that extends to the supplies. The ADG824 exhibits break-before-make switching action.
The low on resistance of the ADG824 makes this device ideal for audio switching. In addition, a data rate of 180 Mbps makes the device suitable for USB low speed 1.5 Mbps and full speed 12 Mbps data switching.

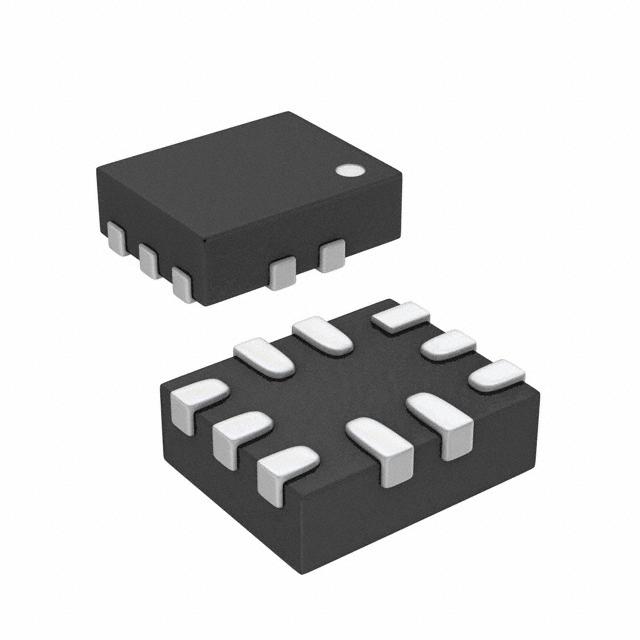

The ADG824 is available in a 1.3 mm × 1.6 mm, 10-lead mini LFCSP package.
**PRODUCT HIGHLIGHTS**
**APPLICATIONS**
### Features and Benefits
300 mA continuous
输出接口数 4
供电电流 3 nA
电路数 2
通道数 2
针脚数 10
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 90 MHz
电源电压 1.65V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 10
封装 LFCSP-10
高度 0.53 mm
封装 LFCSP-10
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADG824BCPZ-REEL7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADG854BCPZ-REEL 亚德诺 | 功能相似 | ADG824BCPZ-REEL7和ADG854BCPZ-REEL的区别 |
ADG824BCPZ-REEL 亚德诺 | 功能相似 | ADG824BCPZ-REEL7和ADG824BCPZ-REEL的区别 |
