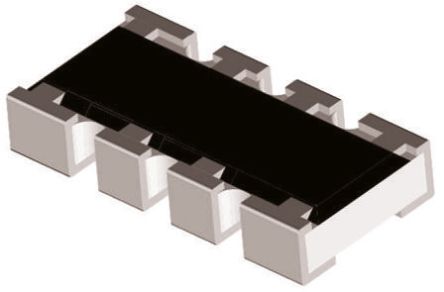

VISHAY ACASA4702E4702P100 精密电阻阵列, 47K
The ACAS series precision thin film chip Resistor Array with convex terminations combine the proven reliability of discrete chip resistors with the advantages of chip resistor array. Defined tolerance matching and TCR tracking makes this perfectly suited for applications with outstanding requirements towards stable fixed resistor ratios. Four equal resistor values or two pairs are available for the ACAS 0612 AT, whereas the ACAS 0606 AT is available either with two equal or two different resistor values.
额定电压DC 75.0 V
容差 ±0.25 %
额定功率 0.3 W
针脚数 8
电阻 47 kΩ
阻值偏差 ±0.25 %
额定电压 75 V
安装方式 Surface Mount
引脚数 8
封装 0612
长度 3.2 mm
宽度 1.6 mm
高度 0.55 mm
封装 0612
工作温度 -55℃ ~ 125℃
温度系数 ±25 ppm/℃
包装方式 Tape & Reel TR
制造应用 Automotive, Signal Processing, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
