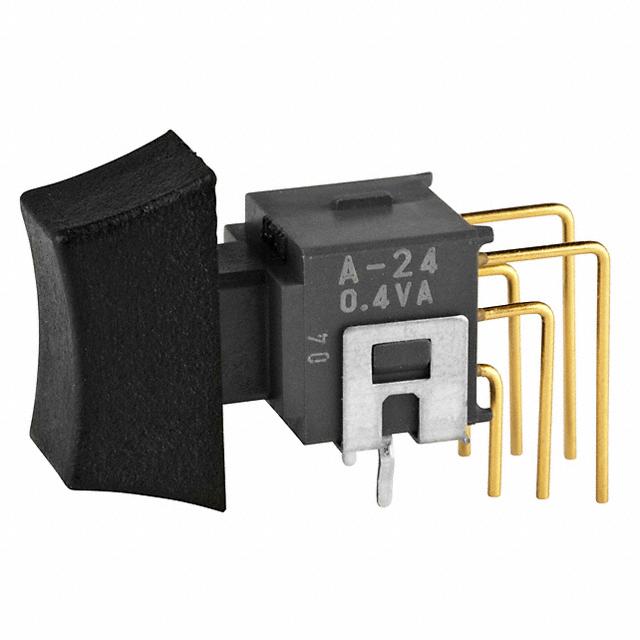

A24K1V-EA

翘板开关 ON-ON-ON .3 WD BLK VERTICAL PC .4VA

A Series toggle switches are designed for use in a low-voltage, low-current, logic-level circuit. When used as intended in a logic-level circuit, the results do not produce hazardous energy. The A Series toggles have not been tested for UL recognition or CSA certification.

得捷:
SWITCH ROCKER SP3T 0.4VA 28V

贸泽:
翘板开关 ON-ON-ON .3 WD BLK VERTICAL PC .4VA

艾睿:
Implementing this A24K1V-EA rocker switch from NKK Switches will give the user complete control of whether your design is on or not. It has a SP3T configuration. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. This rocker switch panel has a minimum operating temperature of -30 °C and a maximum of 85 °C. The A24K1V-EA rocker switch panel has a PC pin termination style. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC. This product is 9.5 mm long, 15.2 mm tall and 26.26 mm deep.

Allied Electronics:
SWITCH ROCKER SP3T 0.4VA 28V

Chip1Stop:
Switch Rocker ON ON ON SP3T PC Pins Rocker 0.1A 28VAC 28VDC 0.4VA 50000Cycles

Verical:
Switch Rocker ON ON ON SP3T PC Pins Rocker 0.1A 28VAC 28VDC 0.4VA 50000Cycles
