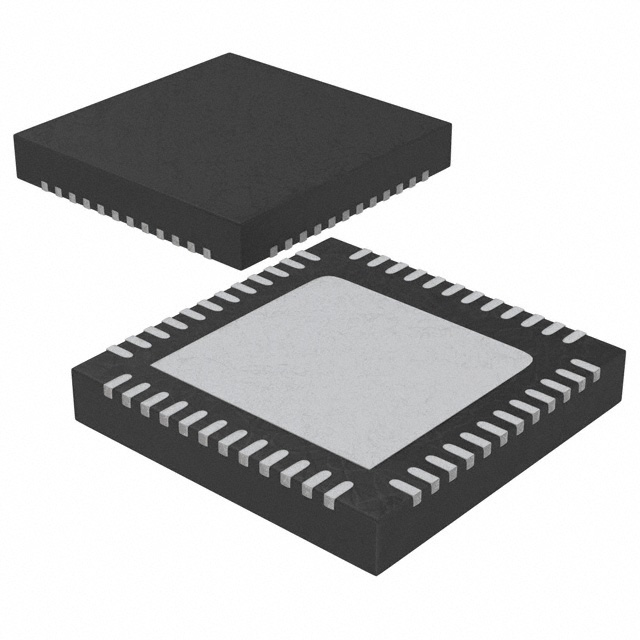

SAMR21 系列 256 kB 闪存 32 kB SRAM 48 MHz 32-位 微控制器 - QFN-48EP
The is a 32-bit SMART ARM-based Wireless Microcontroller with 256kB flash and 32kB SRAM memory. IEEE 802.15.4 compliant single chip combines an ARM® Cortex®-M0+ based 32-bit microcontroller and best-in-class 2.4GHz RF transceiver. It offers an excellent RF performance, with a link budget of 103dBm while consuming 50% less active current than existing offerings. The device features IEEE 802.15.4 MAC hardware accelerators and automatic transmission modes, wake-on-radio, offers twelve-channel direct memory access DMA controller, up to four configurable SERCOM modules for I²C, SPI and USART and a 128-bit AES crypto engine. The device features further blocks like a Peripheral Touch Controller PTC, Full-Speed USB Device and embedded Host and hardware components to support RF distance measurements. To complement that set the SAM R21 also supports external power amplifiers and antenna diversity.
频率 2.4 GHz
时钟频率 48.0 MHz
RAM大小 32 KB
输出功率 4 dBm
工作温度Max 85 ℃
工作温度Min 40 ℃
电源电压 1.8V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 48
封装 QFN-48
封装 QFN-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Consumer Electronics, Industrial, Metering, RF Communications
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ATSAMR21G18A-MU ATMEL 爱特美尔 | 当前型号 | 当前型号 |
ATSAMR21G18A-MUT 爱特美尔 | 类似代替 | ATSAMR21G18A-MU和ATSAMR21G18A-MUT的区别 |
