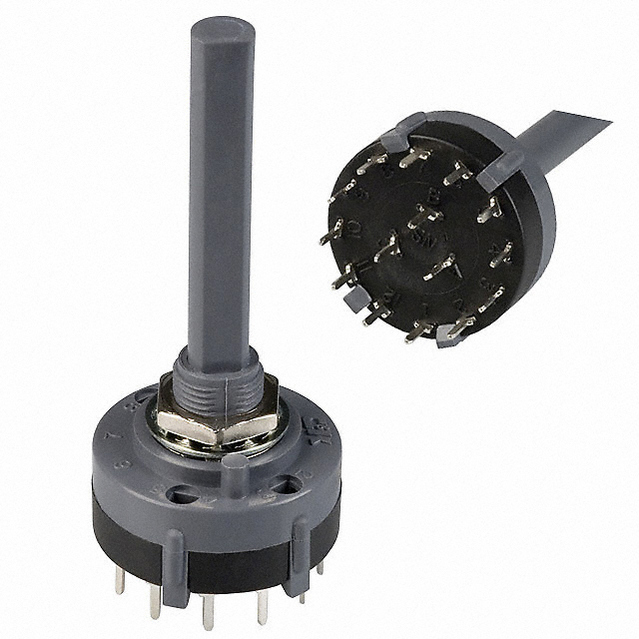

SW ROTARY 3P 4POS PC MNT 125V
C&K A Series rotary Switches feature 1-4 Poles, Non-Shorting Contact, Solder Lugs or PC pins termination. Silver over copper alloy contact material completes these durable switches. Threaded bushing mount 3/8-32 comes with nut, lockwasher and stop ring.
欧时:
SWITCH ROTARY 4POS 2.5A 125V
立创商城:
A30415RNCQ
贸泽:
Rotary Switches PC TERMINAL 2.5A @125VAC 350MA@250VDC
艾睿:
By giving more than two switch positions, this A30415RNCQ rotary switch from C&a;K Components gives the ability to expand your design options. It has a 3P4T configuration. This device has a maximum current rating of 2.5 A @ 125VAC. This rotary limit switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The A30415RNCQ rotary limit switch has a PC pin termination style. This product is 26.19 mm long, 60.59 mm tall and 26.19 mm deep. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 125@CSA/UL VDC.
Allied Electronics:
Switch; Rotary; 3P4T; 1.5" Flatted Act; Non-Shorting; 2.5A; 125VAC/DC; PC ThruHole
安富利:
Switch Rotary N.C. 3P4T 4 Flatted Shaft PC Pins 2.5A 125VAC 125VDC
Chip1Stop:
Switch Rotary N.O./N.C. 3P4T 4 Flatted Shaft PC Pins 2.5A 125VAC 125VDC Automotive
Verical:
Switch Rotary N.O./N.C. 3P4T 4 Flatted Shaft PC Pins 2.5A 125VAC 125VDC Automotive
Newark:
# C & K COMPONENTS A30415RNCQ ROTARY SWITCH
MASTER:
1-4 Pole Rotary Switch
Electro Sonic:
1-4 Pole Rotary Switch
额定电压DC 125 V
额定电压AC 125 V
额定电流 2.5 A
针脚数 4
额定电流Max 2.5A @125VAC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 125 VAC
额定电压DC Max 125 V
额定电压AC Max 125 V
接触电阻Max <20 mΩ
安装方式 Through Hole
封装 -
长度 26.19 mm
高度 60.59 mm
直径 26.2 mm
封装 -
触点材质 Coin Silver
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509020
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
A30415RNCQ C&K Components | 当前型号 | 当前型号 |
