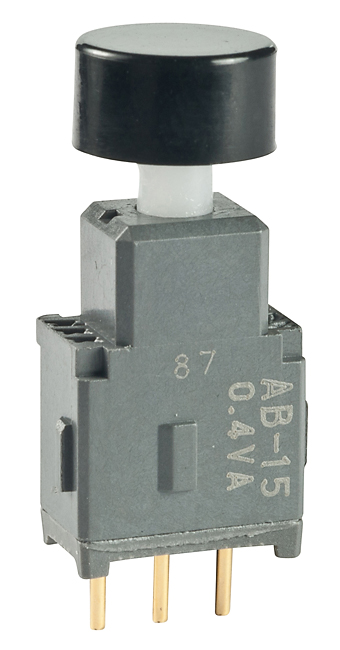

Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole
按钮 SPDT 标准 通孔
得捷:
SWITCH PUSH SPDT 0.4VA 28V
立创商城:
AB15AP-HA
艾睿:
Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole
Allied Electronics:
Switch; Sealed; P/B; SPDT; ON-ON; Straight PC Terminal; Black Cap; 0.4A; 28VAC/DC
Chip1Stop:
Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole
Verical:
Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole
Powell:
SUBMINIATURE PUSHBUTTON/PC
额定电压DC 28 V
额定电压AC 28 V
额定电流 0 A
排数 1
额定电流Max 0.1A @28VAC, 28VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 28 VAC
接触电阻Max 50 mΩ
安装方式 Through Hole
封装 -
长度 9.8 mm
宽度 5.84 mm
高度 19.4 mm
封装 -
触点材质 Phosphor Bronze
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
