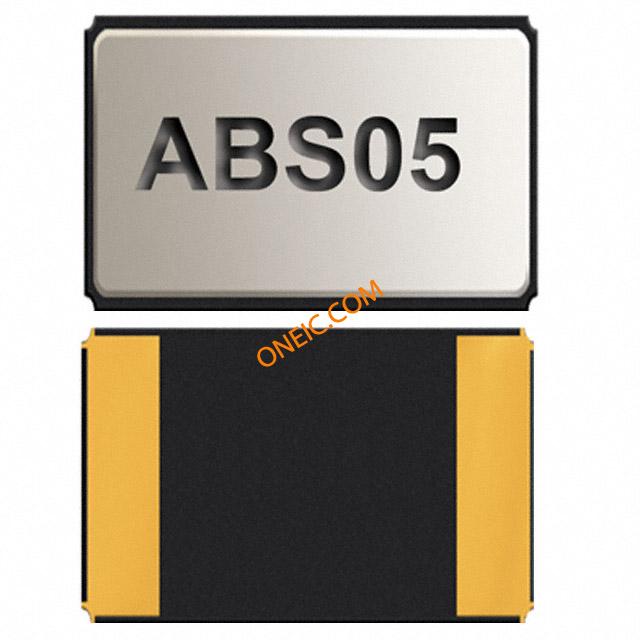

ABRACON ABS05-32.768KHZ-T 晶振, 32.768KHZ, 12.5PF, 1.6 X 1MM
The ABS05 series SMD low profile Crystal Oscillator works at a frequency of 32.768kHz. It is suitable for use in smart display credit cards, wide range in communication and measuring equipment, wireless communications, PDA and palm pilot applications.
- .
- Smallest 32.768kHz package available
- .
- 0.5mm Height ideal for high density circuit boards
- .
- Ceramic package offers excellent environmental and heat resistance
- .
- Hermetically sealed
频率 32.768 kHz
频率容差 ±20 ppm
等效串联电阻ESR 90 kΩ
负载电容 12.5 pF
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 1.6 mm
宽度 1 mm
高度 0.5 mm
封装 SMD-2
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Communications & Networking, Wireless, Commercial, 工业, Industrial, Test & Measurement, 无线, 商业, 通信与网络, 测试与测量
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ABS05-32.768KHZ-T Abracon | 当前型号 | 当前型号 |
9HT11-32.768KDZF-T 晶技 | 类似代替 | ABS05-32.768KHZ-T和9HT11-32.768KDZF-T的区别 |
9HT12-32.768KDZF-T 晶技 | 类似代替 | ABS05-32.768KHZ-T和9HT12-32.768KDZF-T的区别 |
