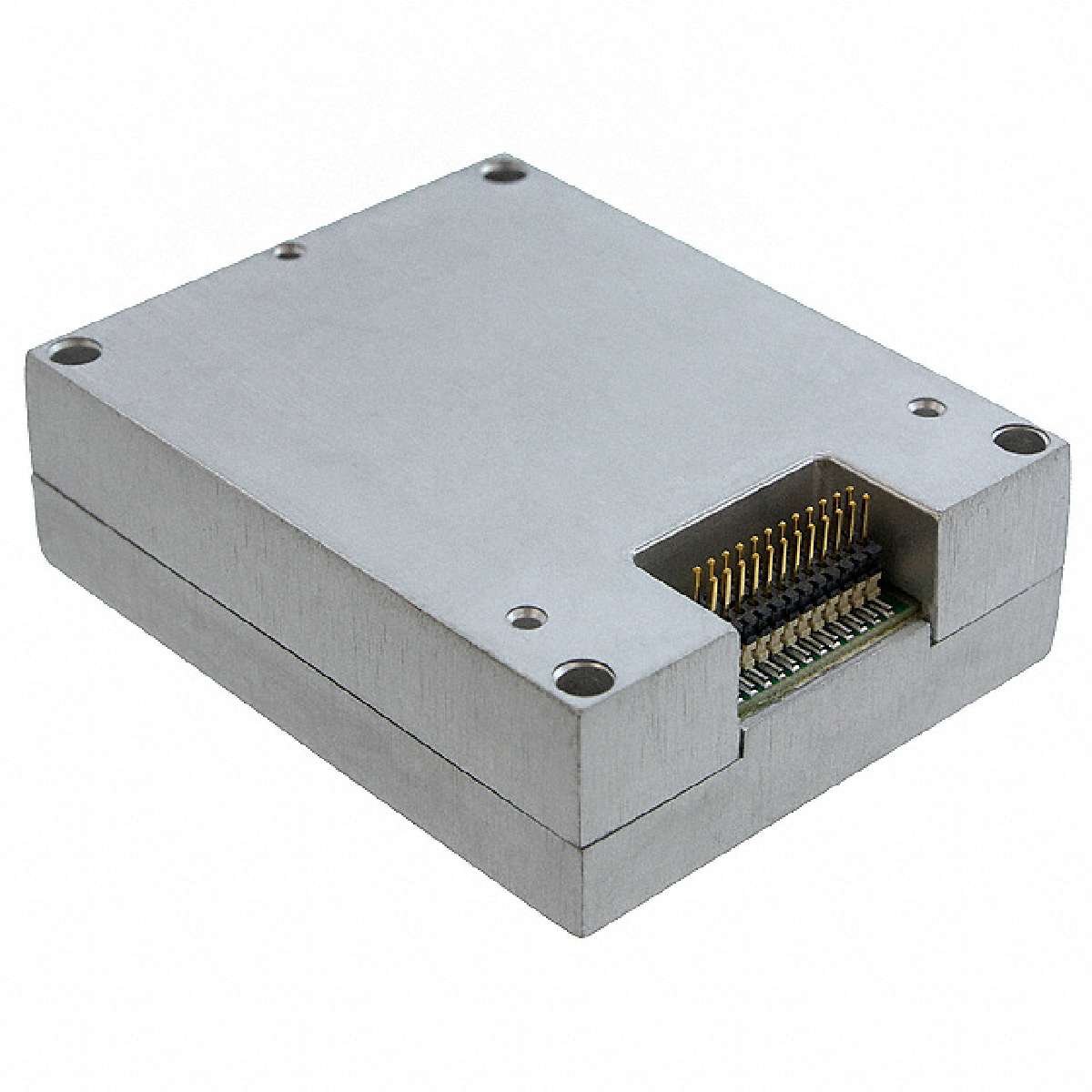

± 450 ° /秒精密角速率传感器 ±450°/Sec Precision Angular Rate Sensor
With this S16136AMLZ gyroscope from Analog Devices you"ll always get the most accurate measurements of instantaneous velocity or the rate of change of velocity of the object to which it is attached. This device has a maximum of 5.25 V. This part has a minimum operating temperature of -40 °C and a maximum of 105 °C. This device is made with mems technology.
电源电压DC 4.75V min
供电电流 120 mA
带宽 380 Hz
工作温度Max 105 ℃
工作温度Min -40 ℃
3dB带宽 380 Hz
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
引脚数 24
封装 Module
长度 36 mm
宽度 44 mm
高度 14 mm
封装 Module
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tray
制造应用 Energy, Avionics, Asset Tracking, Missiles and Precision Munitions, Healthcare, Aerospace and Defense, Security and Surveillance, Communications, Imaging, Ass, Wireless Infrastructure, Unmanned Systems, Scanning Equipment, Renewable Energy Generation, Automotive, ADAS & Autonomous Driving, Integrate
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 7A994
