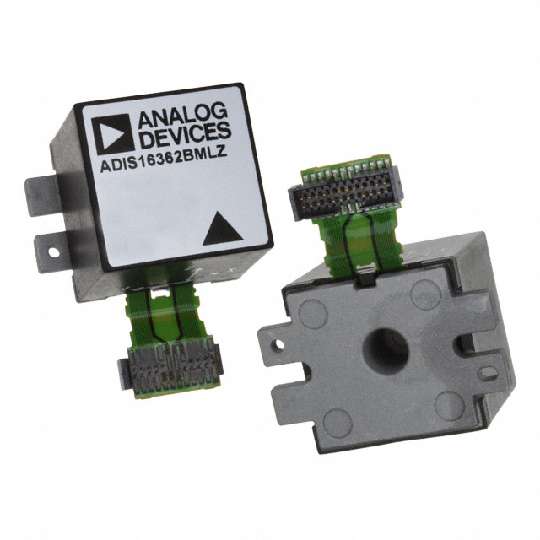

ADIS16362BMLZ

ANALOG DEVICES  ADIS16362BMLZ  模块, MEMS, 串行, 三轴陀螺仪，三轴加速度计, 4.75 V, 5.25 V, 模块, 24 引脚, ± 75°/s, ± 150°/s, ± 300°/s

The S16362BMLZ is an iSensor® Inertial System that includes a 3-axis gyroscope and triaxis accelerometer. The device combines industry-leading iMEMS® technology with signal conditioning that optimizes dynamic performance. The device provides a simple method for integrating accurate, multiaxis, inertial sensing into industrial systems, especially when compared with the complexity and investment associated with discrete designs. All necessary motion testing and calibration are part of the production process at the factory, greatly reducing system integration time. Tight orthogonal alignment simplifies inertial frame alignment in navigation systems. An improved SPI interface and register structure provide faster data collection and configuration control. The device uses a compatible pin-out and the same package as the ADIS1635x family.

.

<0.05° Tight orthogonal alignment

.

330Hz Wide sensor bandwidth

.

Autonomous operation and data collection no external configuration commands required

.

180ms Start-up time

.

4ms Sleep mode recovery

.

Factory-calibrated sensitivity, bias and axial alignment

.

-20 to +70°C Calibration temperature range

.

Embedded temperature sensor

.

Automatic and manual bias correction controls

.

Bartlett window FIR filter length, number of taps

.

Digital I/O - Data-ready, alarm indicator, general-purpose

.

Alarms for condition monitoring

.

Sleep mode for power management

.

Enable external sample clock input up to 1.2kHz

.

2000g Shock survivability
