为± 300A °/秒偏航角速度陀螺仪 ±300°/sec Yaw Rate Gyro
With this gyroscope from Analog Devices you"ll always get the most accurate measurements of instantaneous velocity or the rate of change of velocity of the object to which it is attached. This device has a maximum of 5.25 V. This part has a minimum operating temperature of -40 °C and a maximum of 105 °C. This device is made with mems technology.
得捷:

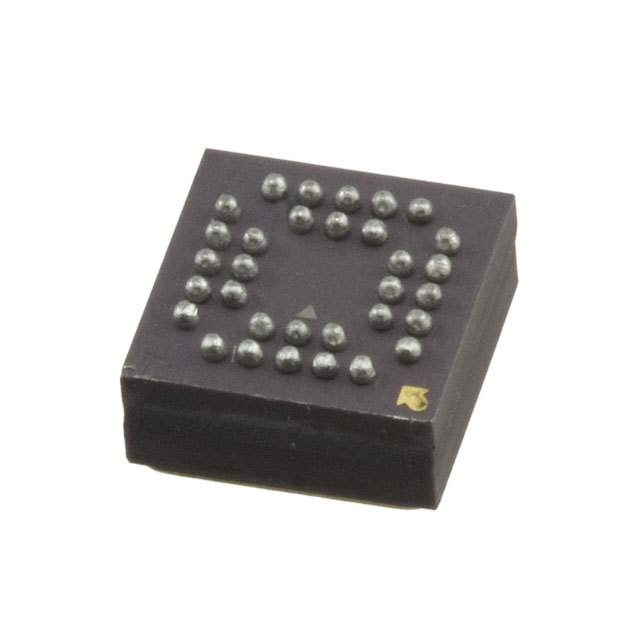

IC GYROSCOPE YAW RATE 32-CBGA
立创商城:
ADXRS620BBGZ-RL
贸泽:
Gyroscopes 300 Deg/s Yaw Rate
艾睿:
A single-axis automotive grade MEMS gyroscope capable of surviving 2000g of shock, temperatures up to 105°C and integrated self-testing
Verical:
MEMS Single Axis ±300°/s Automotive 32-Pin CBGA T/R
DeviceMart:
IC GYROSCOPE YAW RATE 32-CBGA
供电电流 3.5 mA
带宽 2500 Hz
工作温度Max 105 ℃
工作温度Min -40 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 VDC
电源电压Min 4.75 VDC
安装方式 Surface Mount
引脚数 32
封装 CBGA-32
长度 7 mm
宽度 7 mm
高度 3 mm
封装 CBGA-32
工作温度 -40℃ ~ 105℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 7A994
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADXRS620BBGZ-RL ADI 亚德诺 | 当前型号 | 当前型号 |
ADXRS610BBGZ 亚德诺 | 完全替代 | ADXRS620BBGZ-RL和ADXRS610BBGZ的区别 |
ADXRS620BBGZ 亚德诺 | 功能相似 | ADXRS620BBGZ-RL和ADXRS620BBGZ的区别 |
ADXRS610BBGZ-RL 亚德诺 | 功能相似 | ADXRS620BBGZ-RL和ADXRS610BBGZ-RL的区别 |
