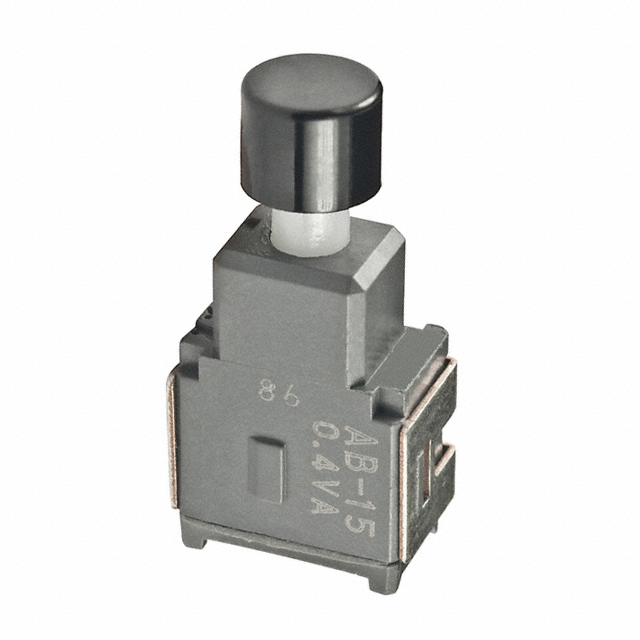

NKK SWITCHES AB15AH-FA 微型按钮开关, PC
按钮 SPDT 标准 通孔,直角
得捷:
SWITCH PUSH SPDT 0.4VA 28V
立创商城:
AB15AH-FA
e络盟:
微型按钮开关, PC
艾睿:
Easily reset the current state or mode using this AB15AH-FA push button switch manufactured from NKK Switches. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a SPDT configuration. This push switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The AB15AH-FA push switch has a PC pin termination style. This product is 9.8 mm long, 6.18 mm tall and 20.48 mm deep. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC.
Allied Electronics:
Switch; Sealed; P/B; SPDT; ON-ON; R/A PC Term W/Bracket; Black Cap; 0.4A; 28VAC/DC
Chip1Stop:
Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Bracket Mount/Through Hole
Verical:
Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Bracket Mount/Through Hole
Newark:
# NKK SWITCHES AB15AH-FA Pushbutton Switch, SPDT, On-On, 28 V, 28 V, Through Hole
额定电压DC 28 V
接触器类型 Button
额定电压AC 28 V
排数 1
方向 Right Angle
触点类型 SPDT
额定电流Max 0.1A @28VAC, 28VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 28 VAC
接触电阻Max 50 mΩ
安装方式 Through Hole
封装 -
长度 9.8 mm
宽度 20.48 mm
高度 6.18 mm
封装 -
触点材质 Phosphor Bronze
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
