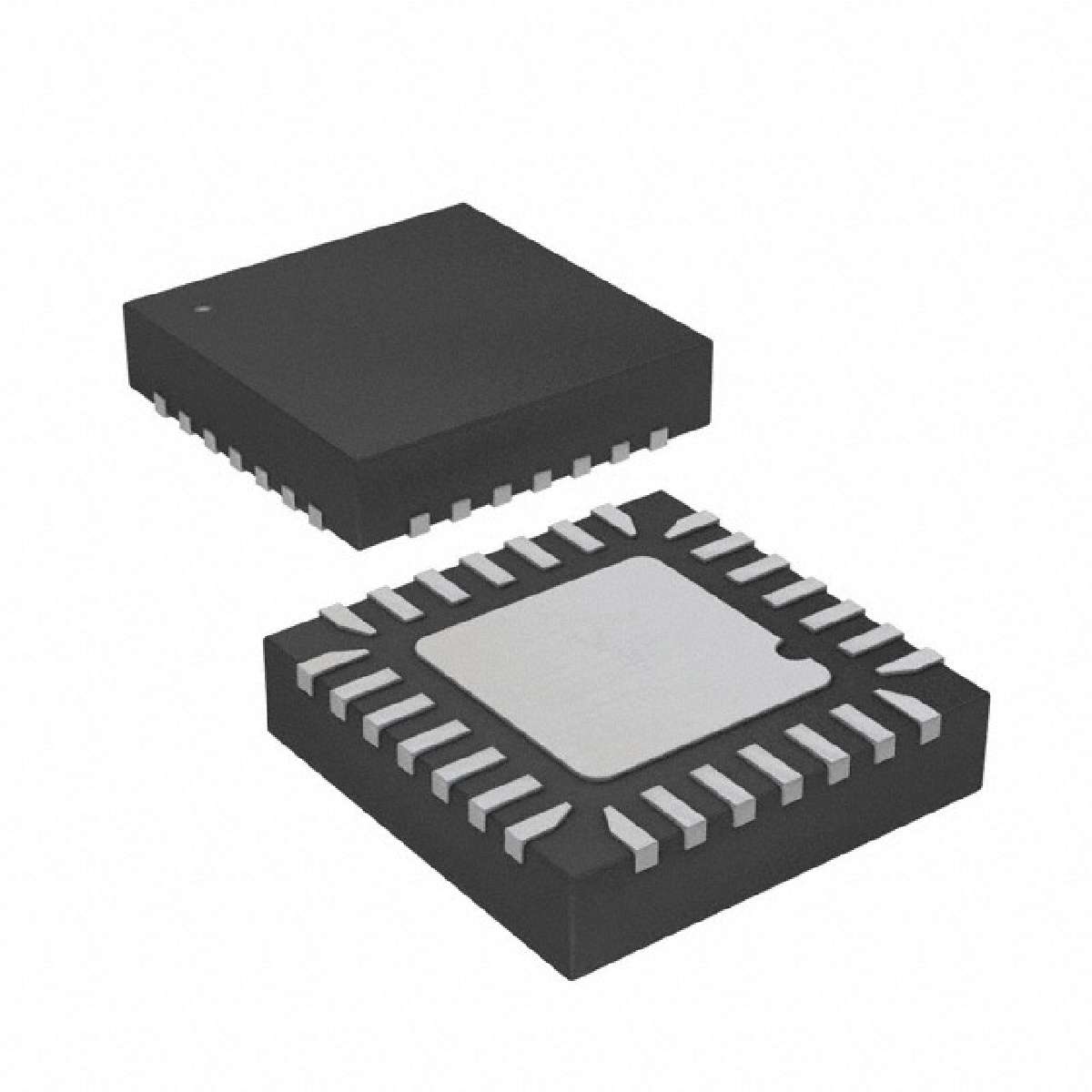

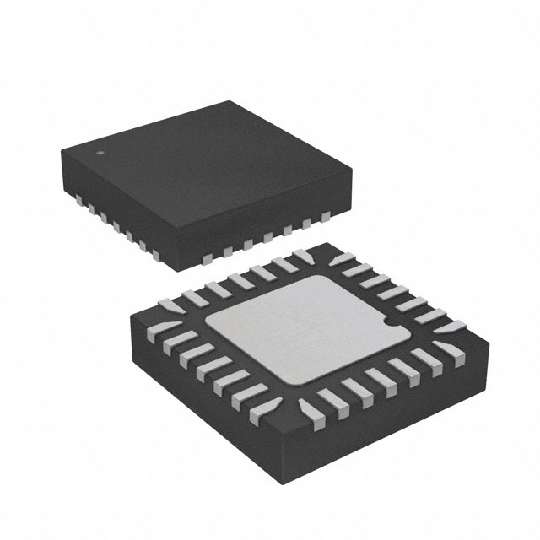

ATMEL AT42QT2160-MMU 电容式触摸传感器, I2C, 1.8 V, 5.5 V, QFN, 28 引脚, -40 °C
The is a QMatrix Touch Sensor IC designed for use with up to 16 keys and a slider constructed from 2 keys up to 8 keys. The device is a digital burst mode charge-transfer QT™ sensor designed specifically for matrix layout touch controls; it includes all signal processing functions necessary to provide stable sensing under a wide variety of changing conditions. The device uses an I²C-compatible interface to allow key data to be extracted and to permit individual key parameter setup. The command structure is designed to minimize the amount of data traffic while maximizing the amount of information conveyed.
- .
- Patented spread-spectrum charge-transfer technology transverse mode
- .
- Adjacent Key Suppression® AKS® technology
- .
- Moisture tolerance
电源电压DC 1.80V min
输出电压 0.7.4.4 V
供电电流 1.127 µA
通道数 16
针脚数 28
负载电容 20 pF
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.8V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 28
封装 QFN-28
高度 0.88 mm
封装 QFN-28
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 计算机和计算机周边, 通信与网络, 信号处理, Communications & Networking, 消费电子产品, 传感与仪器, Sensing & Instrumentation, Consumer Electronics, Signal Processing, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
