AT42QT1070-SSU概述

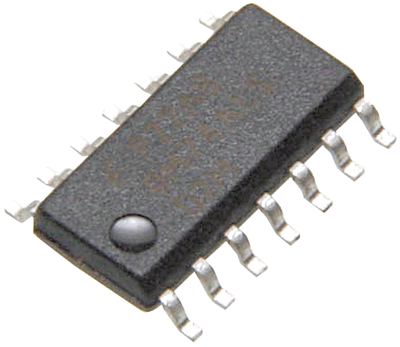

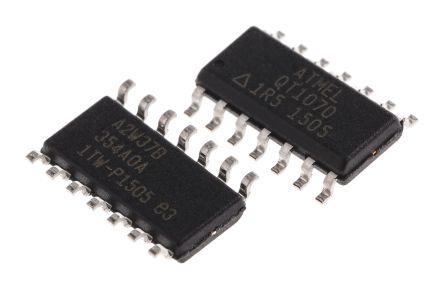

ATMEL  AT42QT1070-SSU  电容式触摸传感器, I2C, 1.8 V, 5.5 V, SOIC, 14 引脚, -40 °C

The is a digital burst mode charge-transfer capacitive Sensor Driver. The device can sense from one to seven keys, dependent on mode. It has the optimized architecture where no external components are required and only 1-pin per channel. It includes all signal processing functions necessary to provide stable sensing under a wide variety of changing conditions and the outputs are fully de-bounced. It modulates its bursts in a spread-spectrum fashion in order to heavily suppress the effects of external noise and to suppress RF emissions. It uses a dual-pulse method of acquisition. This provides greater noise immunity and eliminates the need for external sampling capacitors, allowing touch sensing using a single pin.

.
Comms and Standalone Mode Configurations
.
1 to 7 Keys or 1 to 6 Keys Plus a Guard Channel Comms Mode
.
1 to 4 Keys Plus a Fixed Guard Channel on Key 0 Standalone Mode
.
5-output Standalone Mode
.
Patented Spread-spectrum Charge-transfer Technology
.
6 x 6mm or Larger Panel Thickness Dependent, Widely Different Sizes and Shapes Possible
.
1 PCB Layer Required
.
Etched Copper, Silver, Carbon and Indium Tin Oxide ITO Electrode Materials
.
Plastic, Glass, Composites and Painted surfaces possible Panel Materials
.
Up to 10mm Glass, up to 5mm Plastic Electrode Size Dependent Panel Thickness
.
Individually settable via simple commands over I²C-compatible interface Comms mode
.
I²C-compatible Slave Mode 400kHz, Discrete Detection Outputs Interface
.
Self-calibration, Auto Drift Compensation, Noise Filtering, Adjacent Key Suppression® AKS®
AT42QT1070-SSU中文资料参数规格
技术参数

电源电压DC 1.80V min

针脚数 14

负载电容 30 pF

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 1.8V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 1.8 V

封装参数

安装方式 Surface Mount

引脚数 14

封装 SOIC-14

外形尺寸

长度 8.74 mm

宽度 3.99 mm

高度 1.5 mm

封装 SOIC-14

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Cut Tape CT

制造应用 计算机和计算机周边, Metering, 通信与网络, 建筑自动化, Communications & Networking, Security, Imaging, Video & Vision, Building Automation, Lighting, Computers & Computer Peripherals, Consumer Electronics, Industrial, 便携式器材, 成像, 视频和目视, 计量, Portable Devices, 安全, 消费电子产品, 工业, 照明

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15
