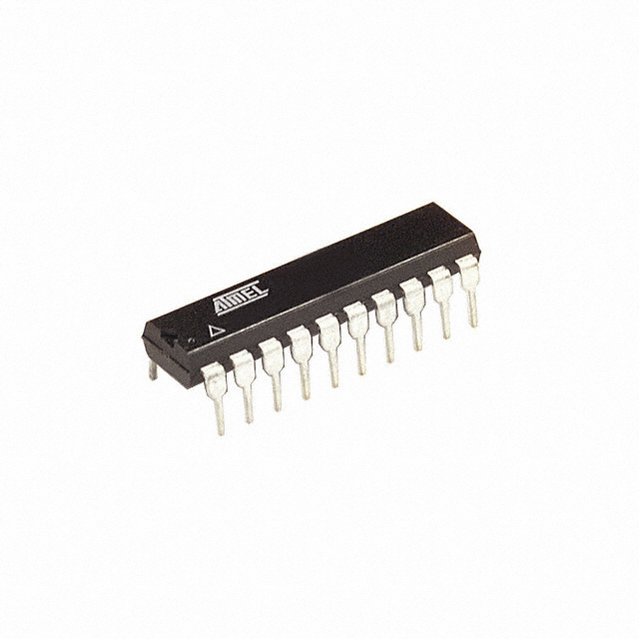

ATF16V8CZ-15PU图片1

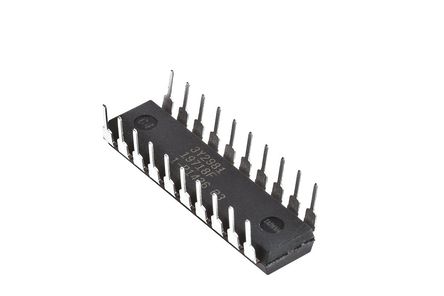

ATF16V8CZ-15PU图片2

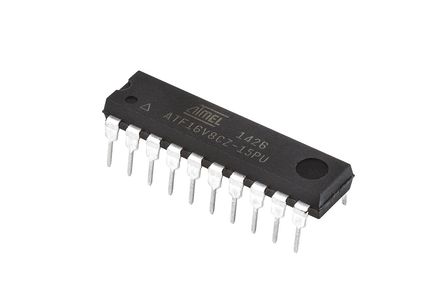

ATF16V8CZ-15PU图片3
ATF16V8CZ-15PU图片4
ATF16V8CZ-15PU图片5
ATF16V8CZ-15PU图片6
ATF16V8CZ-15PU图片7
ATF16V8CZ-15PU图片8
ATF16V8CZ-15PU图片9
ATF16V8CZ-15PU图片10
ATF16V8CZ-15PU图片11
ATF16V8CZ-15PU图片12
ATF16V8CZ-15PU图片13
ATF16V8CZ-15PU概述

ATMEL  ATF16V8CZ-15PU  芯片, EEPLD, 250门, "零功耗", DIP20

The is a high performance EECMOS programmable logic device in 20 pin DIP package. This device utilizes Atmel"s proven electrically erasable flash memory technology. It significantly reduces total system power, enhances system reliability and reduces power supply cost. The supply current drops to less than 5µA typically when all the inputs and internal nodes are not switching. This automatic power down feature or sleep mode allows for power savings in slow clock systems and asynchronous applications.

.
Input or feedback to non registered output time tpd of 15ns
.
Input or feedback setup time of ts 12ns
.
PCI compliant
.
High reliability CMOS process
.
20 years data retention and 100 erase/write cycles
.
Reprogrammable and 100% tested advance flash technology
.
CMOS and TTL compatible inputs and outputs
.
Power supply voltage of 5V
.
Internal feedback frequency of 62MHz
.
Operating temperature range from -40°C to 85°C
ATF16V8CZ-15PU中文资料参数规格
技术参数

频率 62 MHz

电源电压DC 4.50V min

供电电流 105 mA

针脚数 20

时钟频率 15.0 GHz

逻辑门个数 250

I/O引脚数 8

存取时间 15.0 ns

输入/输出数 8 Input

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 4.5V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 4.5 V

输入电压 5 V

封装参数

安装方式 Through Hole

引脚数 20

封装 DIP-20

外形尺寸

长度 26.92 mm

宽度 7.11 mm

高度 5.334 mm

封装 DIP-20

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tube

制造应用 Embedded Design & Development, 嵌入式设计与开发

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

在线购买ATF16V8CZ-15PU
型号: ATF16V8CZ-15PU
制造商: ATMEL 爱特美尔
描述:ATMEL  ATF16V8CZ-15PU  芯片, EEPLD, 250门, "零功耗", DIP20
替代型号ATF16V8CZ-15PU
型号/品牌 代替类型 替代型号对比

ATF16V8CZ-15PU

ATMEL 爱特美尔

当前型号

当前型号

GAL16V8D-7LP

莱迪思

功能相似

ATF16V8CZ-15PU和GAL16V8D-7LP的区别

GAL16V8D-15QP

莱迪思

功能相似

ATF16V8CZ-15PU和GAL16V8D-15QP的区别
