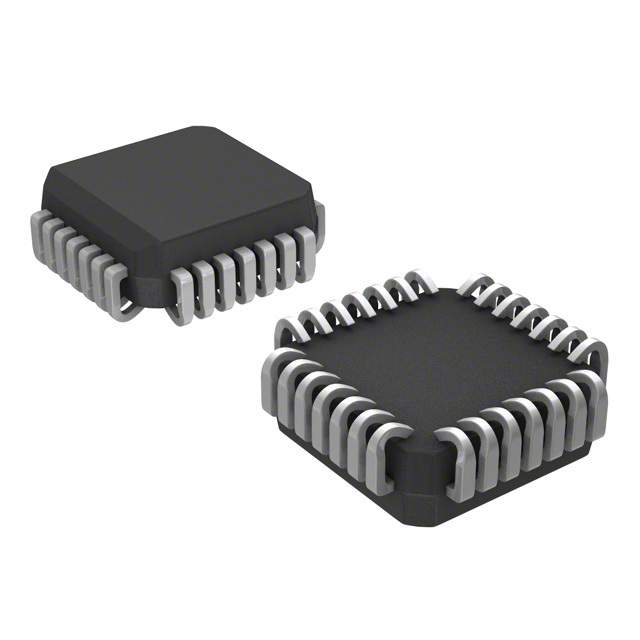

ATMEL ATF22V10CQZ-20JU 芯片, EEPLD, 500门, 20ns, PLCC28
The is a high-performance CMOS electrically-erasable Programmable Logic Device PLD which utilizes proven electrically-erasable flash memory technology. Speeds down to 12ns with zero standby power dissipation are offered. All speed ranges are specified over the full 5V ±10% range for industrial temperature ranges, 5V ±5% for commercial range 5V device. It provides a low voltage and edge-sensing zero power CMOS PLD solution with "zero" standby power 5µA typical. It also provides a zero power CMOS PLD solution with 5V operating voltages, powering down automatically to the zero power-mode through Atmel"s patented input transition detection ITD circuitry when the device is idle, offering zero 25µA worst case standby power. This feature allows the user to manage total system power to meet specific application requirements and enhance reliability. Pin keeper circuits on input and output pins eliminate static power consumed by pull-up resistors.
频率 50 MHz
电源电压DC 4.50V min
供电电流 80 mA
针脚数 28
时钟频率 20.0 GHz
逻辑门个数 500
I/O引脚数 28
存取时间 20.0 ns
输入/输出数 10 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
输入电压 5 V
安装方式 Surface Mount
引脚数 28
封装 PLCC-28
长度 11.58 mm
宽度 11.582 mm
高度 4.572 mm
封装 PLCC-28
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 Industrial, Commercial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ATF22V10CQZ-20JU ATMEL 爱特美尔 | 当前型号 | 当前型号 |
ATF22V10CQZ-20JC 爱特美尔 | 类似代替 | ATF22V10CQZ-20JU和ATF22V10CQZ-20JC的区别 |
ATF22V10CQZ-20JI 爱特美尔 | 类似代替 | ATF22V10CQZ-20JU和ATF22V10CQZ-20JI的区别 |
GAL22V10D-5LJ 莱迪思 | 功能相似 | ATF22V10CQZ-20JU和GAL22V10D-5LJ的区别 |
