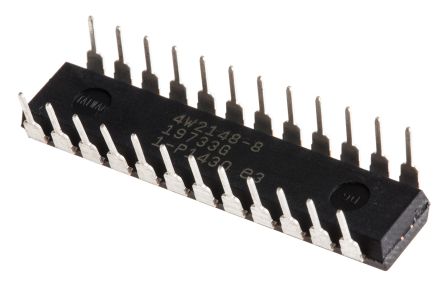

ATMEL ATF22V10CQZ-20PU 芯片, EEPLD, 500门, 20ns, PDIP24
The is a high-performance CMOS electrically erasable Programmable Logic Device PLD which utilizes the Atmel proven electrically erasable flash memory technology. Speeds down to 12ns with zero standby power dissipation are offered. All speed ranges are specified over the full 5V ±10% range for industrial temperature ranges, 5V ±5% for commercial range 5-volt devices. The ATF22V10CQZ provides a low voltage and edge-sensing "zero" power CMOS PLD solution with "zero" standby power 5µA typical. The ATF22V10CQZ provides a "zero" power CMOS PLD solution with 5V operating voltages, powering down automatically to the zero power-mode through the Atmel patented Input Transition Detection ITD circuitry when the device is idle, offering "zero" 100µA worst case standby power. This feature allows the user to manage total system power to meet specific application requirements and enhance reliability.
频率 50 MHz
电源电压DC 4.50V min
供电电流 80 mA
针脚数 24
时钟频率 20.0 GHz
逻辑门个数 500
I/O引脚数 24
存取时间 20.0 ns
输入/输出数 10 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
输入电压 5 V
安装方式 Through Hole
引脚数 24
封装 DIP-24
长度 32.13 mm
宽度 7.112 mm
高度 5.334 mm
封装 DIP-24
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 商业, Industrial, Commercial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ATF22V10CQZ-20PU ATMEL 爱特美尔 | 当前型号 | 当前型号 |
ATF22V10CZ-15PC 爱特美尔 | 类似代替 | ATF22V10CQZ-20PU和ATF22V10CZ-15PC的区别 |
ATF22V10CZ-15PI 爱特美尔 | 类似代替 | ATF22V10CQZ-20PU和ATF22V10CZ-15PI的区别 |
ATF22V10CQZ-20PI 爱特美尔 | 类似代替 | ATF22V10CQZ-20PU和ATF22V10CQZ-20PI的区别 |
