低失真差分RF / IF放大器 Low Distortion Differential RF/IF Amplifier
Product Details
The AD8351 is a low cost differential amplifier useful in RF and IF applications up to 2.2 GHz. The voltage gain can be set from unity to 26 dB using a single external gain resistor. The AD8351 provides a nominal 150 Ω differential output impedance. The excellent distortion performance and low noise characteristics of this device allow for a wide range of applications.
The AD8351 is designed to satisfy the demanding performance requirements of communications transceiver applications. The device can be used as a general-purpose gain block, an ADC driver, and a high speed data interface driver, among other functions. The AD8351 can also be used as a single-ended-to-differential amplifier with similar distortion products as in the differential configuration. The exceptionally good distortion performance makes the AD8351 an ideal solution for 12-bit and 14-bit IF sampling receiver designs.
Fabricated in Analog Devices, Inc., high speed XFCB process, the AD8351 has high bandwidth that provides high frequency performance and low distortion. The quiescent current of the AD8351 is 28 mA typically. The AD8351 amplifier comes in a compact 10-lead MSOP package or in a 16-lead LFCSP package, and operates over the temperature range of −40°C to +85°C.
**Applications**
**Availability**
Other RF / IF amplifiers products:
AD8367 \- 500 MHz Single Ended, Analog Controlled VGA
AD8369 \- 600 MHz, 45 dB Digitally Controlled Variable Gain Amplifier
AD8350 \- 1.0 GHz Differential Amplifier
### Features and Benefits
0 dB ≤ AV ≤ 26 dB
–79 dBc second at 70 MHz
–81 dBc third at 70 MHz
**AD8351-EP supports defense and aerospace applications AQEC standard**
频率 0Hz ~ 2.2GHz
电源电压DC 5.00 V
供电电流 28mA ~ 32mA
通道数 1
耗散功率 0.32 W
带宽 2.2 GHz
增益 26 dB
测试频率 10 MHz
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 3000 MHz
耗散功率Max 320 mW
电源电压 3V ~ 5.5V
安装方式 Surface Mount
引脚数 10

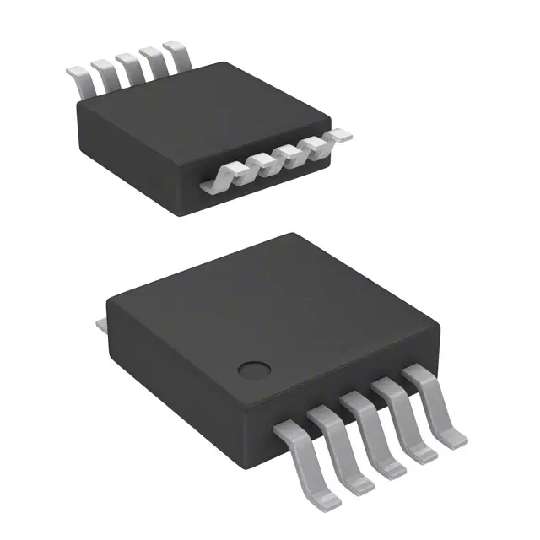

封装 MSOP-10
高度 0.85 mm
封装 MSOP-10
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Aerospace and Defense, Milcom
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD8351ARMZ-REEL7 ADI 亚德诺 | 当前型号 | 当前型号 |
AD8351ARM 亚德诺 | 完全替代 | AD8351ARMZ-REEL7和AD8351ARM的区别 |
AD8351ARMZ 亚德诺 | 类似代替 | AD8351ARMZ-REEL7和AD8351ARMZ的区别 |
AD8351ARM-REEL7 亚德诺 | 类似代替 | AD8351ARMZ-REEL7和AD8351ARM-REEL7的区别 |
