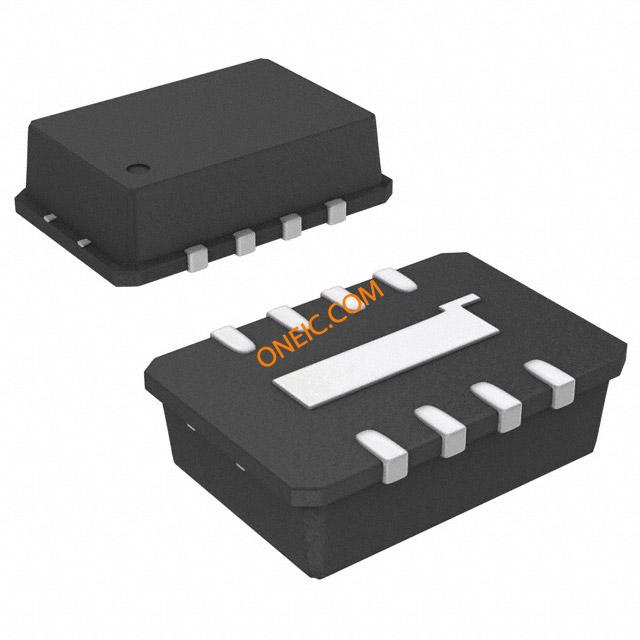

ANALOG DEVICES AD8353ACPZ-REEL7 芯片, 射频/中频放大器, 19.5DB, 1MHZ-2.7GHZ, LFCSP-8
The is a broadband RF Gain Block operates at frequencies from 1MHz up to 2.7GHz. The AD8353 is a fixed-gain linear amplifier intended for use in a wide variety of wireless devices, including cellular, broadband, CATV and LMDS/MMDS applications. By taking advantage of "s high performance, complementary Si bipolar process, these gain blocks provide excellent stability over process, temperature and power supply. This amplifier is single-ended and internally matched to 50R with a return loss of greater than 10dB over the full operating frequency range. The AD8353 provides linear output power of 9dBm with 20dB of gain at 900MHz when biased at 3V and an external RF choke is connected between the power supply and the output pin. The DC supply current is 42mA. At 900MHz, the output third-order intercept OIP3 is greater than 23dBm and is 19dBm at 2.7GHz. The noise figure is 5.3dB at 900MHz. The reverse isolation S12 is -36dB at 900MHz and -30dB at 2.7GHz.
频率 1MHz ~ 2.7GHz
电源电压DC 2.70V min
供电电流 35mA ~ 48mA
电路数 1
通道数 1
针脚数 8
耗散功率 0.812 W
增益 15.6 dB
测试频率 2.7 GHz
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 812 mW
电源电压 3V, 5V
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 8
封装 LFCSP-8
长度 3.00 mm
宽度 2.00 mm
高度 0.83 mm
封装 LFCSP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 射频通信, Power Management, RF Communications, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
