ADRF6820ACPZ-R7

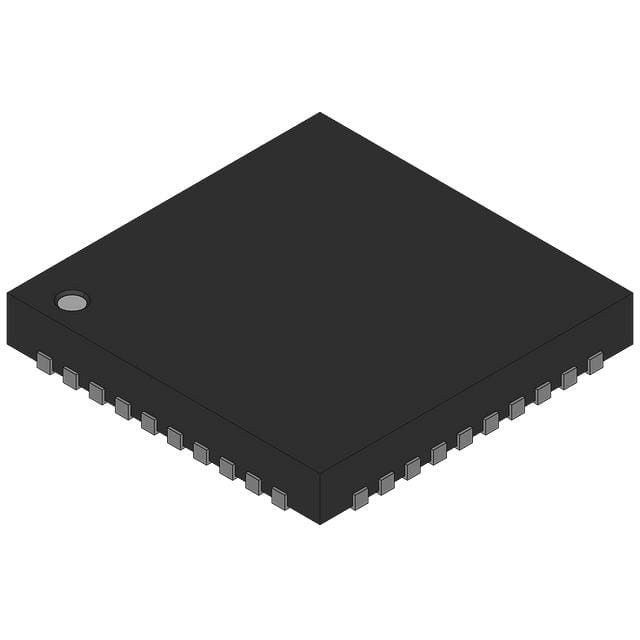

ANALOG DEVICES  ADRF6820ACPZ-R7  芯片, 解调器, 695MHZ-2.7GHZ, LFSCP-40

The is a Quadrature Demodulator operates from 695 to 2700MHz, integrated fractional-N PLL and VCO. The ADRF6820 is a highly integrated demodulator and synthesizer ideally suited for next generation communication systems. The feature rich device consists of a high linearity broadband I/Q demodulator, an integrated fractional-N phase-locked loop PLL and a low phase noise multicore, voltage controlled oscillator VCO. The ADRF6820 also integrates a 2:1 RF switch, an on-chip tunable RF balun, a programmable RF attenuator and two low dropout LDO regulators. This highly integrated device fits within a small 6 x 6mm footprint. The high isolation 2:1 RF switch and on-chip tunable RF balun enable the ADRF6820 to support two single-ended, 50R terminated RF inputs. A programmable attenuator ensures an optimal differential RF input level to the high linearity demodulator core. The integrated attenuator offers an attenuation range of 0 to 15dB with a step size of 1dB.

.

356.25 to 2850MHz Internal LO frequency range

.

14.5dBm at 1900MHz RF Input P1dB

.

35dBm at 1900MHz RF Input IP3

.

Programmable HD3/IP3 trim

.

Single pole, double throw SPDT RF input switch

.

0 to 15dB RF digital step attenuation range

.

Integrated RF tunable balun for single-ended 50R input

.

Multicore integrated VCO

.

600MHz Demodulated 1dB bandwidth

.

1400MHz Demodulated 3dB bandwidth

.

4 Selectable baseband gain and bandwidth modes

.

Digital programmable LO phase offset and DC nulling

.

Programmable via 3-wire serial port interface SPI
