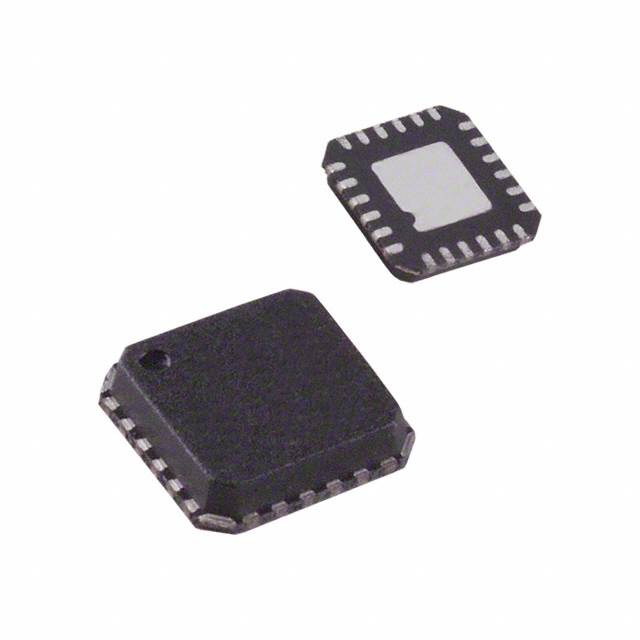

ADF4252BCPZ-R7

锁相环 - PLL 1000-2500MHz Frac-N PLL

Product Details

The ADF4252 is a dual fractional-N/integer-N frequency synthesizer that can be used to implement local oscillators LO in the upconversion and downconversion sections of wireless receivers and transmitters. Both the RF and IF synthesizers consist of a low noise digital phase frequency detector PFD, a precision charge pump, and a programmable reference divider. The RF synthesizer has a Σ-Δ-based fractional interpolator that allows programmable fractional-N division. The IF synthesizer has programmable integer-N counters. A complete phase-locked loop PLL can be implemented if the synthesizer is used with an external loop filter and voltage controlled oscillator VCO.

Control of all the on-chip registers is via a simple 3-wire interface. The device operates with a power supply ranging from 2.7 V to 3.3 V and can be powered down when not in use.

Applications

.

Base stations for mobile radio GSM, PCS, DCS, CDMA, WCDMA

.

Wireless handsets GSM, PCS, DCS, CDMA, WCDMA

.

Wireless LANs

.

Communications test equipment

.

CATV equipment

### Features and Benefits

.

3.0 GHz fractional-N/1.2 GHz integer-N

.

2.7 V to 3.3 V power supply

.

Separate VP allows extended tuning voltage to 5 V

.

Programmable dual modulus prescaler

.

RF: 4/5, 8/9

.

* IF: 8/9, 16/17, 32/33, 64/65

.

Programmable charge pump currents

.

3-wire serial interface

.

Digital lock detect

.

Power-down mode

.

Programmable modulus on fractional-N synthesizer

.

Trade off noise vs. spurious performance
