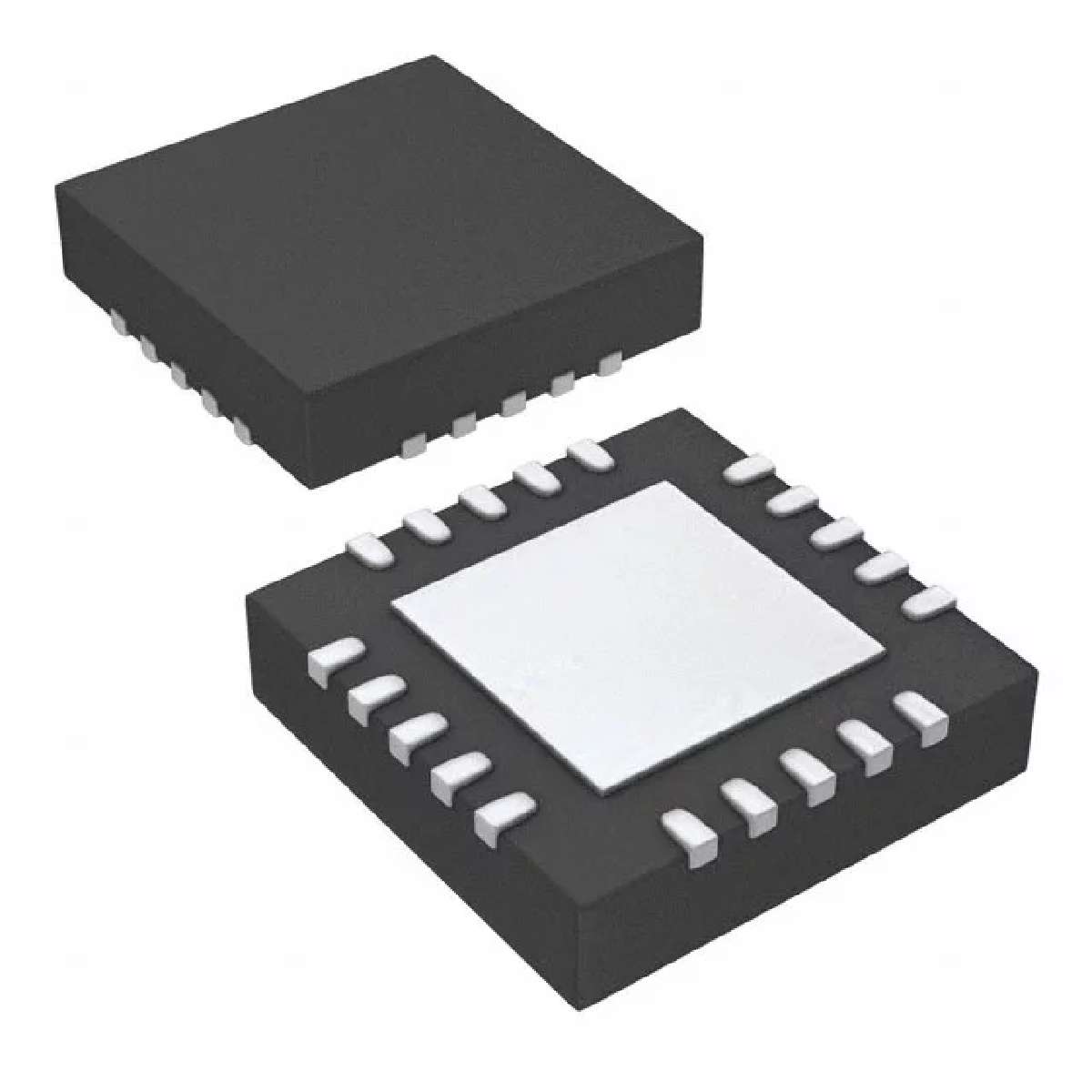

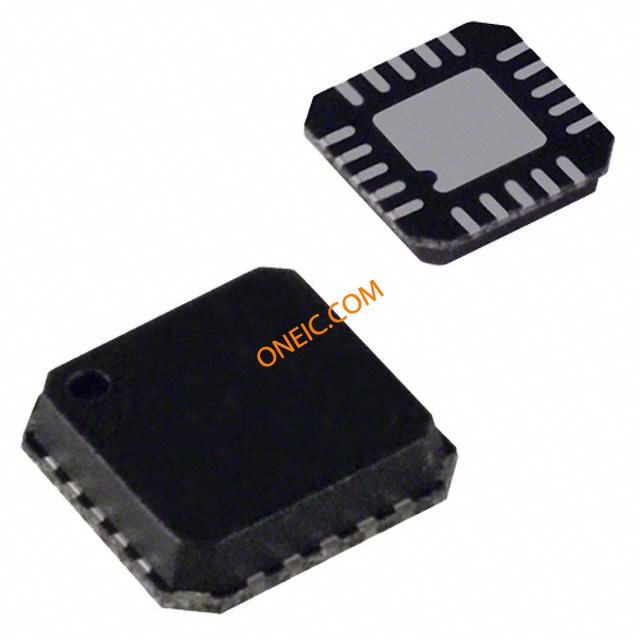

ADL5363ACPZ-R7概述

2300 MHz至2900 MHz的平衡混频器 2300 MHz to 2900 MHz Balanced Mixer

Product Details

The ADL5363 uses a highly linear, doubly balanced passive mixer core along with integrated RF and local oscillator LO balancing circuitry to allow for single-ended operation. The ADL5363 incorporates an RF balun to provide optimal performance over a 2300 MHz to 2900 MHz input frequency range. The balanced passive mixer arrangement provides good LO-to-RF leakage, typically better than −30 dBm, and excellent intermodulation performance. The balanced mixer core also provides extremely high input linearity, allowing the device to be used in demanding cellular applications where in-band blocking signals might otherwise result in the degradation of dynamic performance.

The ADL5363 provides two switched LO paths that can be used in TDD applications where it is desirable to rapidly switch between two local oscillators. LO current can be externally set using a resistor to minimize dc current commensurate with the desired level of performance. For low voltage applications, the ADL5363 is capable of operation at voltages down to 3.3 V with substantially reduced current. For low voltage operation, an additional logic pin is provided to power down <200 μA the circuit when desired.

The ADL5363 is fabricated using a BiCMOS high performance IC process. The device is available in a 5 mm × 5 mm, 20-lead LFCSP and operates over a −40°C to +85°C temperature range. An evaluation board is also available.

**Applications**

.
Cellular base station receivers
.
Transmit observation receivers
.
Radio link downconverters

### Features and Benefits

.
RF frequency range of 2300 MHz to 2900 MHz
.
IF frequency range of dc to 450 MHz
.
Power conversion loss: 7.7 dB
.
SSB noise figure of 7.6 dB
.
Input IP3 of 31 dBm
.
Typical LO drive of 0 dBm
.
Single-ended, 50 Ω RF and LO input ports
.
High isolation SPDT LO input switch
.
Single-supply operation: 3.3 V to 5 V
.
Exposed pad, 5 mm × 5 mm 20-lead LFCSP
.
1500 V HBM/1250 V FICDM ESD performance
ADL5363ACPZ-R7中文资料参数规格
技术参数

频率 2.3GHz ~ 2.9GHz

电源电压DC 3.30V min

供电电流 100 mA

耗散功率 0.5 W

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 500 mW

电源电压 3.3V ~ 5V

封装参数

安装方式 Surface Mount

引脚数 20

封装 LFCSP EP-20

外形尺寸

高度 0.84 mm

封装 LFCSP EP-20

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 Aerospace and Defense, Radar

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2013/06/20

海关信息

ECCN代码 5A991.b

数据手册

ADL5363ACPZ-R7引脚图与封装图
ADL5363ACPZ-R7引脚图

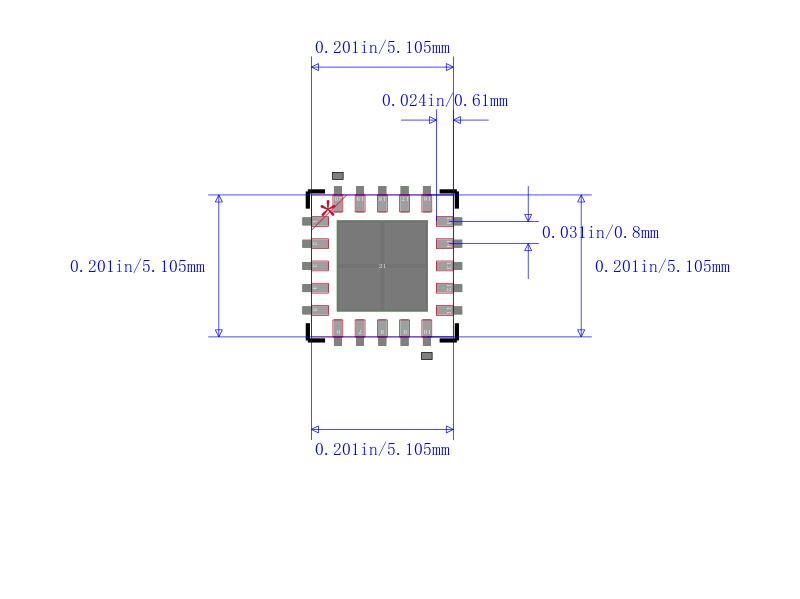

ADL5363ACPZ-R7封装图
ADL5363ACPZ-R7电路图
ADL5363ACPZ-R7封装焊盘图
在线购买ADL5363ACPZ-R7
型号: ADL5363ACPZ-R7
制造商: ADI 亚德诺
描述:2300 MHz至2900 MHz的平衡混频器 2300 MHz to 2900 MHz Balanced Mixer
