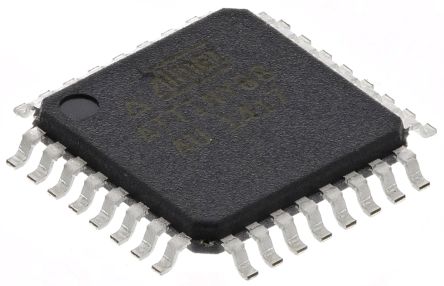

ATTINY88-AU

8 位 PicoPower tinyAVR® 微控制器，AtmelAtmel 的 tinyAVR® 设备经优化处理，适用于需要性能、电源效率、易于使用且采用小型封装的应用。 所有 picoPower 设备均经过重新设计，旨在提供最低的功耗。最紧凑的小型封装，适用于注重尺寸的应用 电容式触摸 快速，且代码高效 高集成 1.8V 至 5.5V 操作（0.7V 操作，用于 ATtiny43U） ### AVR 微控制器，Atmel

The is a 8-bit picoPower AVR RISC-based microcontroller features 8kB of ISP Flash, 64-byte SIP EEPROM, 512-byte internal SRAM, 8-bit timer/counter and 16-bit timer/counter with PWM, 10-bit ADC, SPI and debug wire for on-chip-debug. The device achieves up to 12MIPS throughput at 12MHz. By executing powerful instructions in a single clock cycle, the ATtiny88 achieves throughputs approaching 1MIPS per MHz allowing you to optimize power consumption versus processing speed.

.

Operates between 1.8 to 5.5V

.

High performance

.

Advanced RISC architecture

.

Fully static operation

.

High endurance, non-volatile memory segments

.

10000 Flash/100000 EEPROM write/erase cycles

.

Programming lock for software security

.

Master/slave SPI serial interface

.

On-chip analogue comparator

.

Low power consumption
