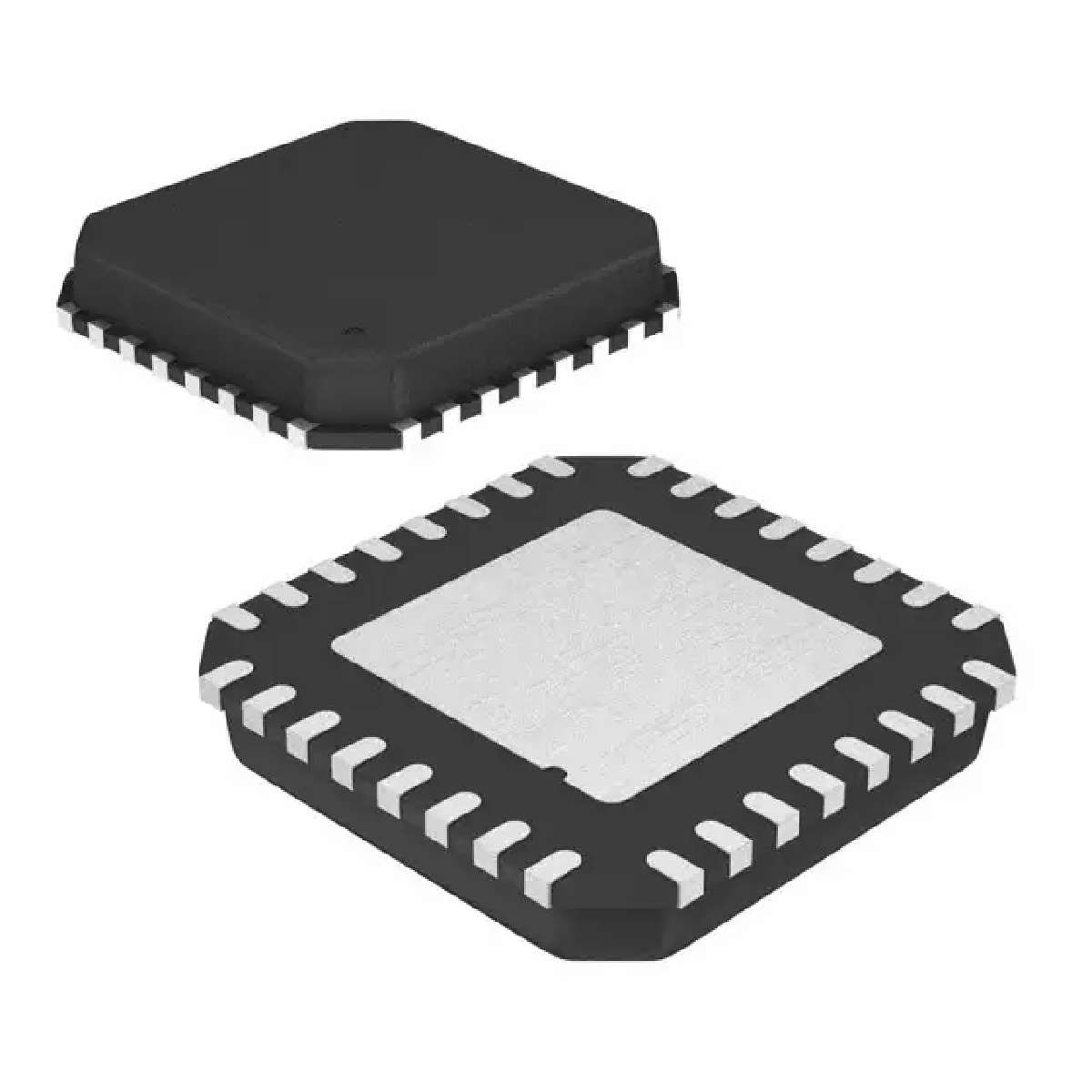

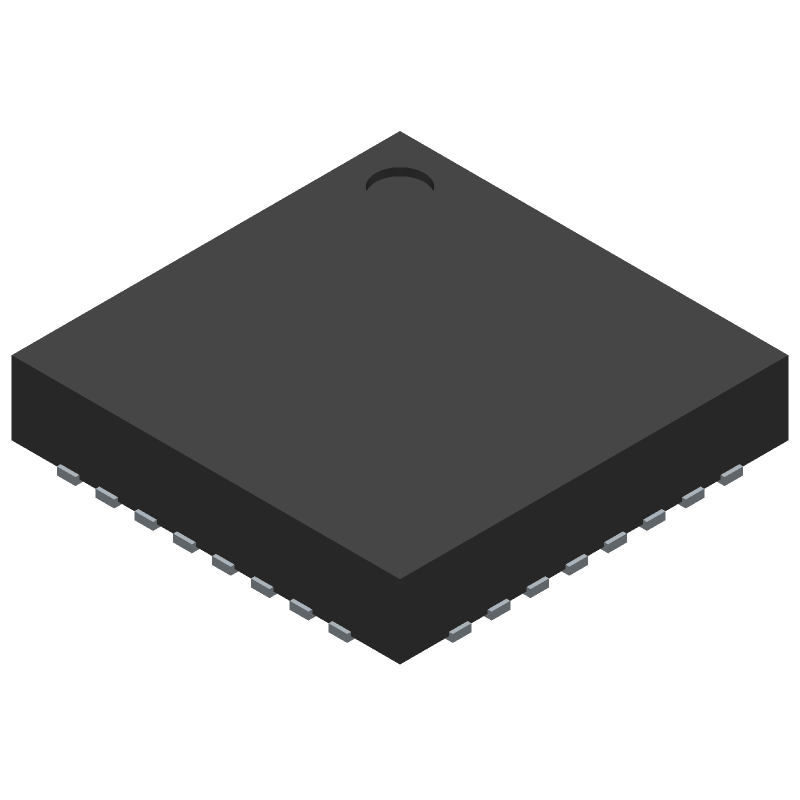

ATTINY88-MU

ATMEL  ATTINY88-MU  微控制器, 8位, 低功率高性能, ATtiny, 12 MHz, 8 KB, 512 Byte, 32 引脚, QFN

The is a 8-bit picoPower AVR RISC-based microcontroller features 8kB of ISP Flash, 64-byte SIP EEPROM, 512-byte internal SRAM, 8-bit timer/counter and 16-bit timer/counter with PWM, 10-bit ADC, SPI and debug wire for on-chip-debug. The device achieves up to 12MIPS throughput at 12MHz. By executing powerful instructions in a single clock cycle, the ATtiny88 achieves throughputs approaching 1MIPS per MHz allowing you to optimize power consumption versus processing speed.

.

Operates between 1.8 to 5.5V

.

High performance

.

Advanced RISC architecture

.

Fully static operation

.

High endurance, non-volatile memory segments

.

10000 Flash/100000 EEPROM write/erase cycles

.

Programming lock for software security

.

Master/slave SPI serial interface

.

On-chip analogue comparator

.

Low power consumption
