ADV3201ASWZ

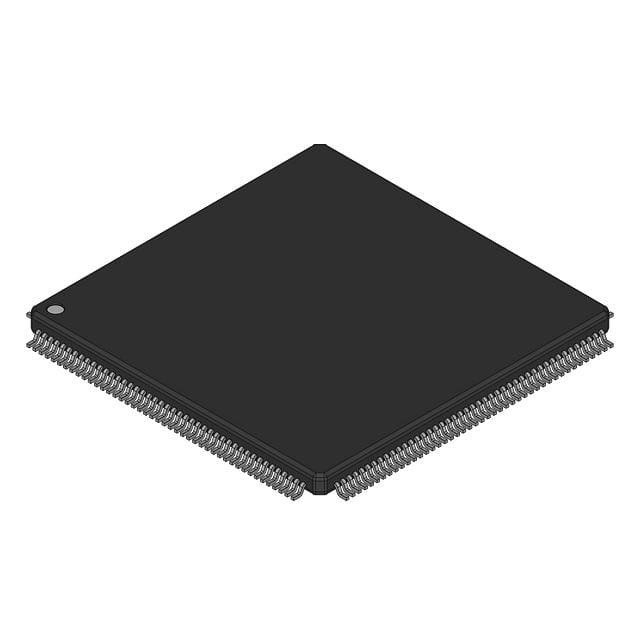

ANALOG DEVICES  ADV3201ASWZ  芯片, 交叉开关, 模拟式, 32X32, LQFP-176

Product Details

The ADV3200/ADV3201 are 32 × 32 analog crosspoint switch matrices. They feature a selectable sync-tip clamp input for ac-coupled applications and an on-screen display OSD insertion mux. With −48 dB of crosstalk and −80 dB isolation at 5 MHz, the ADV3200/ADV3201 are useful in many high density routing applications. The 0.1 dB flatness out to 60 MHz makes the ADV3200/ADV3201 ideal for composite video switching.

The 32 independent output buffers of the ADV3200/ADV3201 can be placed into a high impedance state for paralleling crosspoint outputs so that off-channels present minimal loading to an output bus if building a larger array. The part is available in gain of +1 ADV3200 or +2 ADV3201 for ease of use in back-terminated load applications. A single 5 V supply, dual ±2.5 V supplies, or dual ±3.3 V supplies G = +2 can be used while consuming only 250 mA of idle current with all outputs enabled. The channel switching is performed via a double buffered, serial digital control, which can accommodate daisy chaining of several devices.

The ADV3200/ADV3201 are packaged in a 176-lead exposed pad LQFP 24 mm × 24 mm and are available over the extended industrial temperature range of −40°C to +85°C.

**APPLICATIONS**

.

CCTV surveillance

.

Routing of high speed signals including

Composite video NTSC, PAL, S, SECAM

RGB and component video routing

Compressed video MPEG, Wavelet

.

Video conferencing

Data Sheet, Rev. 0, 11/2008

### Features and Benefits

.

Large, 32 × 32, nonblocking switch array

.

G = +1 ADV3200 or G = +2 ADV3201 operation

.

Pin compatible 32 × 16 versions available ADV3202/ADV3203

.

Single 5 V supply, dual ±2.5 V supply, or dual ±3.3 V supply G=+2

.

Serial programming of switch array

.

2:1 OSD insertion mux per output

Input sync-tip clamp

High impedance output disable allows connection of multiple devices with minimal output bus load

.

Excellent video performance

.

60 MHz 0.1 dB gain flatness

0.1% differential gain error RL = 150 Ω

0.1° differential phase error RL = 150 Ω

.

Excellent ac performance

Bandwidth: >300 MHz

Slew rate: >400 V/µs

.

See data sheet for additional Features
