ADC16DV160HFEB/NOPB概述

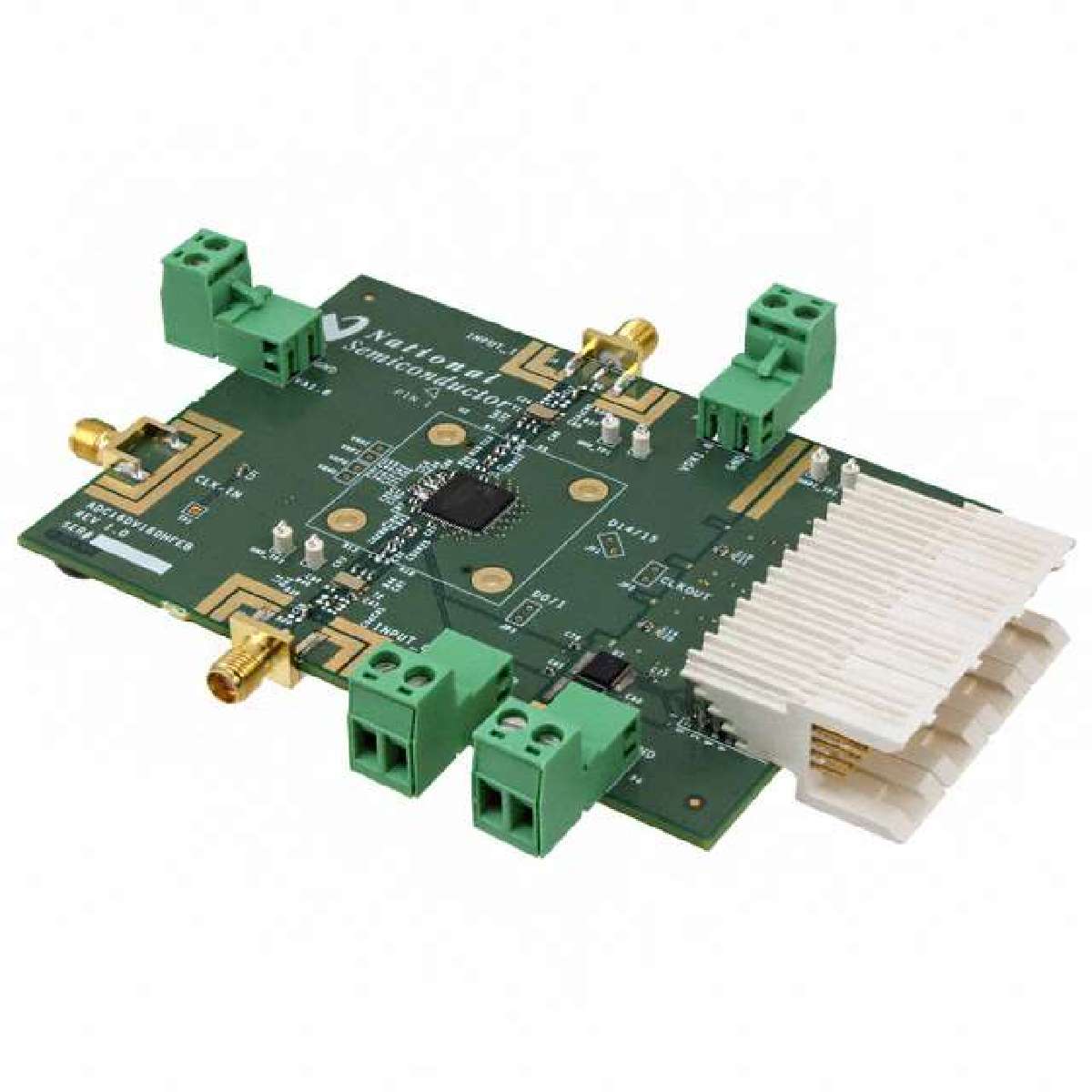

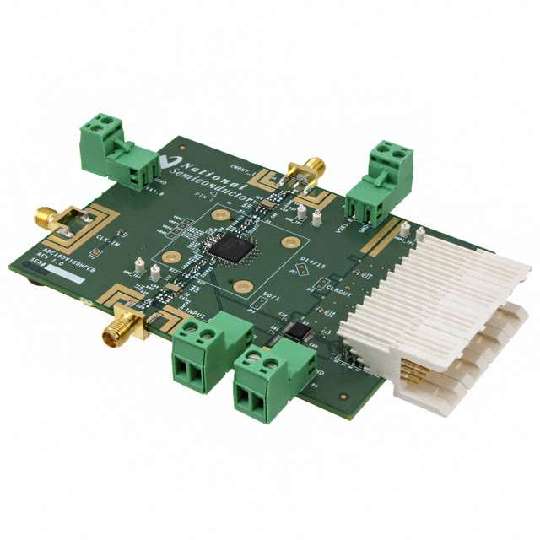

ADC16DV160 Dual Channel 16Bit ADC Evaluation Board
This Design Kit is designed to ease evaluation and design-in of Texas Instruments" ADC16DV160 Dual Channel 16-bit Analog-to-Digital Converter with DDR LVDS outputs, which operates at speeds up 160 Msps.
The evaluation board can be used by connecting the board to the WaveVision 5.1 Data Capture Board order number ?WAVEVSN BRD 5.1?, which is connected to a personal computer through a USB port and running WaveVision software, operating under Microsoft Windows. The software can perform an FFT on the captured data upon command and, in addition to a frequency domain plot, shows dynamic performance in the form of SNR, SINAD, THD, SFDR and ENOB.
