ADS8484EVM概述

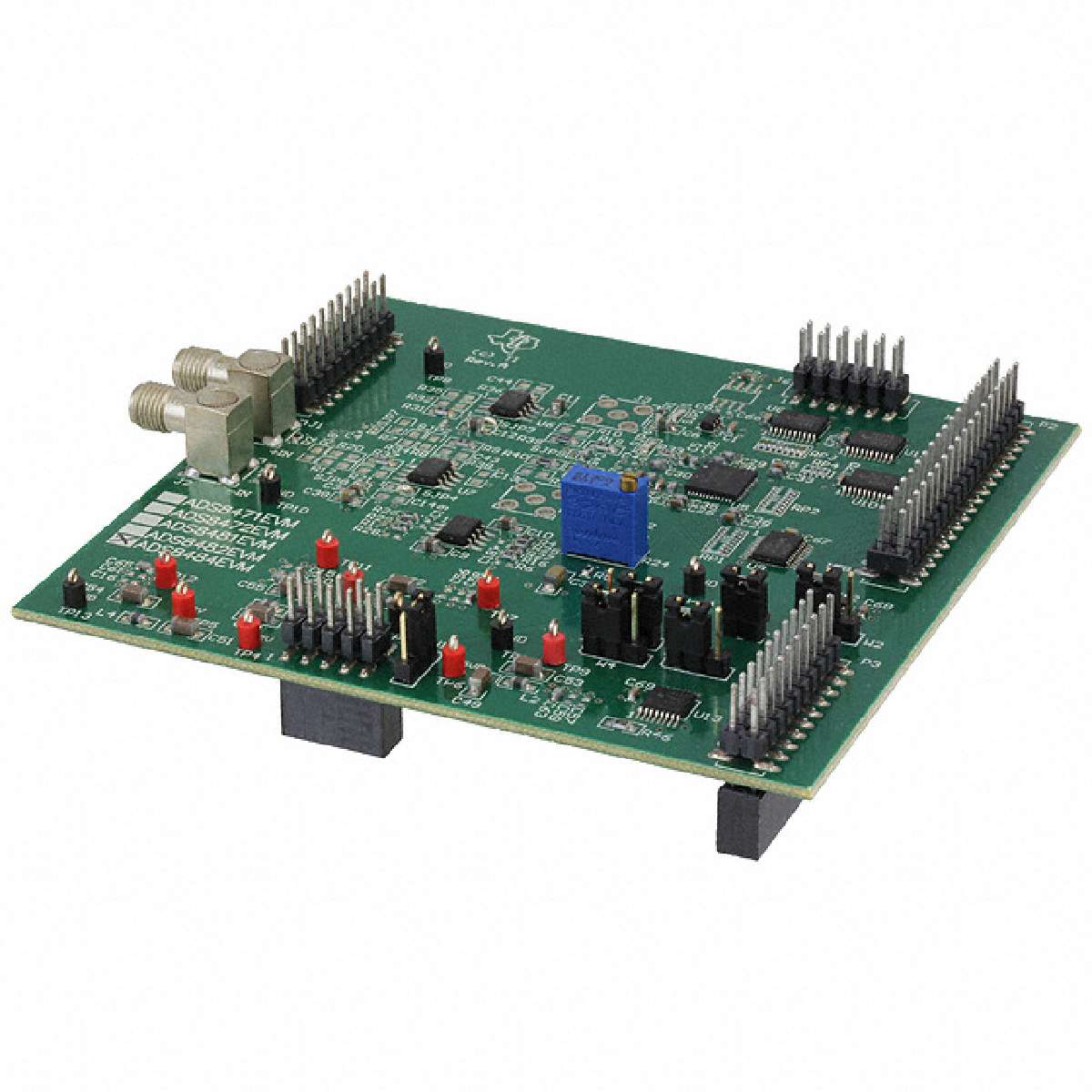

TEXAS INSTRUMENTS  ADS8484EVM  评估模块, ADS8484EVM

The is a full-featured Evaluation Module EVM for the operation of the ADS8484 analog to digital converter. The EVM has on board signal conditioning circuits consisting of three THS4031 operational amplifiers. With these amplifiers the incoming signal can be range scaled, filtered, and level shifted. Not including the reference inherent to the ADS8484, two references are available; one produced by on board reference U1 and second by connecting a voltage to terminal 20 of P1. The ADS8484EVM can be plugged into various motherboards from Texas Instruments.

ADS8484EVM中文资料参数规格
技术参数

位数 18

采样率 1.25 Msps

其他

产品生命周期 Unknown

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

海关信息

ECCN代码 EAR99

数据手册

在线购买ADS8484EVM
型号: ADS8484EVM
制造商: TI 德州仪器
描述:TEXAS INSTRUMENTS  ADS8484EVM  评估模块, ADS8484EVM
