ADC34J43EVM概述

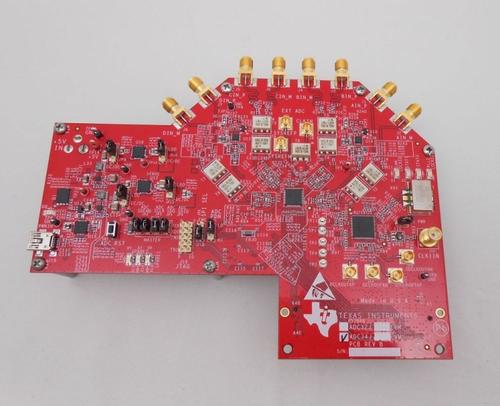

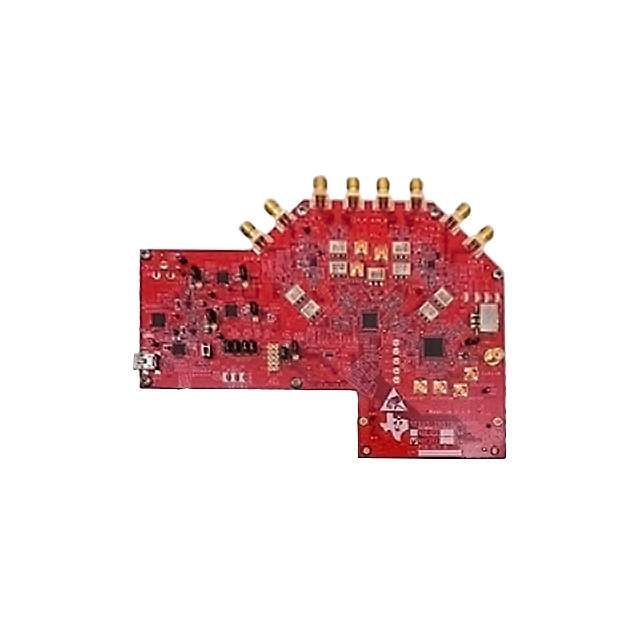

ADC34J43 14Bit ADC Evaluation Module
The ADC34J43 EVM demonstrates the performance of a low power quad 80Msps 14 bit ADC. It includes the ADC34J43 device, JESD204B clocking is provided by the LMK04828 and voltage regulators to provide the necessary voltages. The input for the ADC is by default connected to the transformer input which can be connected to a 50 ohm single ended signal source. The clock reference input is provided via a transformer input and can be connected to a 50 ohm single ended clock source. An onboard LMK04828 can be used to generate the necessary JESD204B clocks. Register access is provided through the on board USB connection and a GUI.
