低功耗,高输出电流,四运放,双通道ADSL / ADSL2 +线路驱动器 Low Power, High Output Current, Quad Op Amp, Dual-Channel ADSL/ADSL2+ Line Driver
Product Details
The AD8392A is comprised of four high output current, low power consumption, operational amplifiers. It is particularly well suited for the CO driver interface in digital subscriber line systems, such as ADSL and ADSL2+. The driver is capable of providing enough power to deliver 20.4 dBm to a line, while compensating for losses due to hybrid insertion and back termination resistors.

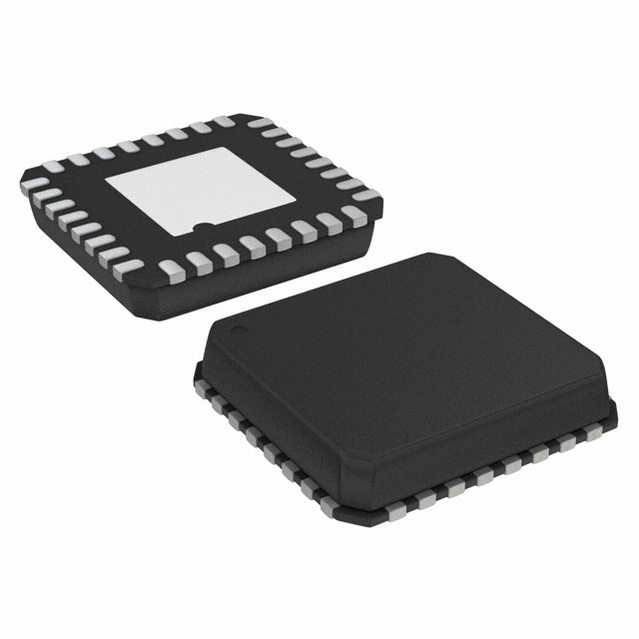

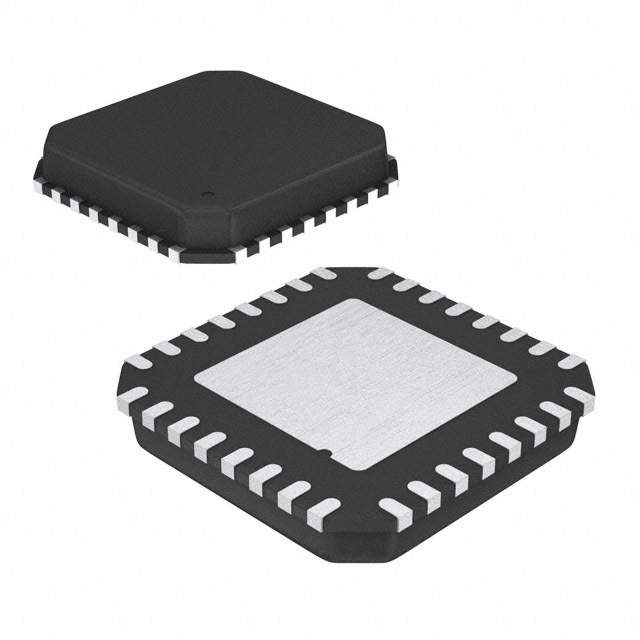

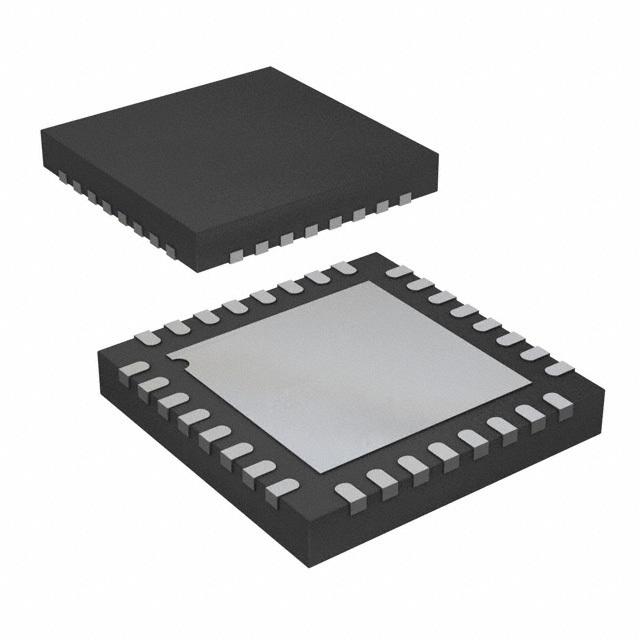

The AD8392A is available in two thermally enhanced packages, a 28-lead TSSOP_EP AD8392AARE and a 5 mm × 5 mm, 32-lead LFCSP AD8392AACP. Four bias modes are available via the use of two digital bits PD1, PD0.
Additionally, the AD8392AACP provides VCOM pins for on-chip, common-mode voltage generation.
The low power consumption, high output current, high output voltage swing, and robust thermal packaging enable the AD8392A to be used as the CO line drivers in ADSL and other xDSL systems.
Applications
### Features and Benefits
通道数 4
共模抑制比 63 dB
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 37 MHz
共模抑制比Min 63 dB
电源电压 5V ~ 24V
电源电压Max 24 V
电源电压Min 10 V
安装方式 Surface Mount
引脚数 32
封装 LFCSP-32
长度 5 mm
宽度 5 mm
高度 0.83 mm
封装 LFCSP-32
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD8392AACPZ-R7 ADI 亚德诺 | 当前型号 | 当前型号 |
AD8392AACPZ-R2 亚德诺 | 完全替代 | AD8392AACPZ-R7和AD8392AACPZ-R2的区别 |
AD8392ACP-REEL7 亚德诺 | 完全替代 | AD8392AACPZ-R7和AD8392ACP-REEL7的区别 |
