ADS7870EVM概述
12Bit ADC, MUX, PGA and Internal Reference DATA ACQUISITION SYSTEM

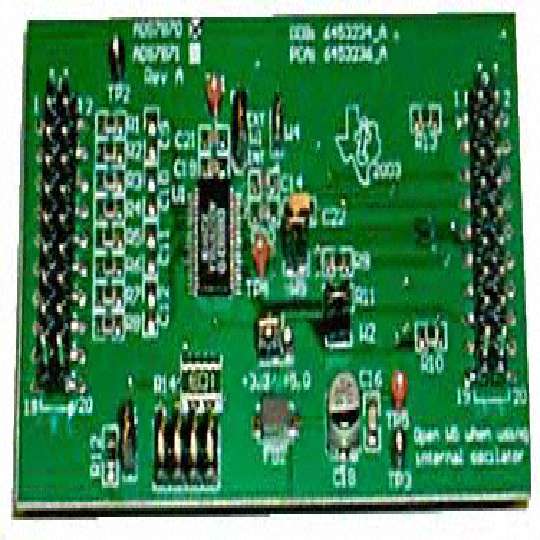

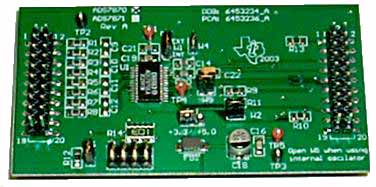

This EVM is an evaluation board for the ADS7870 and ADS7871, 12 and 14 bit data acquisition systems. The board allows the analog inputs, 8 single-ended or 4 differential all with programmable gain adjustment, to be accessible from a single input connector. The EVM can be used as a package for the ADS7870 or ADS7871 as the on board circuits are un-buffered allowing direct access to the on board device.
得捷:
EVALUATION MODULE FOR ADS7870
Chip1Stop:
Evaluation Module For ADS7870
德州仪器TI:
ADS7870 Evaluation Module
