ADS1672 ADC Evaluation Board 625KSPS ADCPro Installer Software

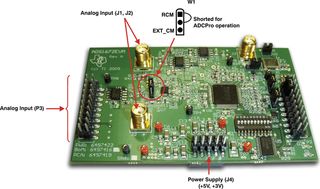

The is an evaluation module to evaluate ADS1672 high speed high resolution 625kSPS 24bit delta sigma ADC. The evaluation module allows evaluation of all aspects of the ADS1672 device using a standard serial CMOS interface. The evaluation module is a stand alone board which accepts control signals from a user defined host processor or pattern generator. Access to the dedicated START pin is provided to allow for direct control of conversions toggle the START pin to begin a conversion, and then retrieve the output data. The flexible serial interface supports data readback with standard CMOS logic levels, allowing the ADS1672 to directly connect to a wide range of microcontrollers, digital signal processors DSPs, or field programmable grid arrays FPGAs.
- .
- Contains all support circuitry needed for the ADS1672
- .
- Voltage references On board
- .
- Clock options On board 20MHz ceramic oscillator or adjustable frequency
- .
- General Purpose Input/output access
- .
- Compatible with the modular EVM System
It is important to operate this EVM within the input voltage range of 3.3V to 5V and the output voltage range of 0V to 5V. Exceeding the specified input range may cause damage to the EVM.
