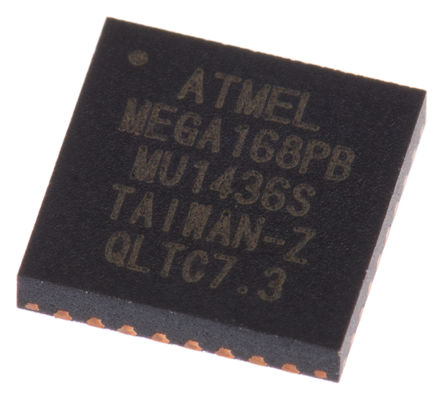

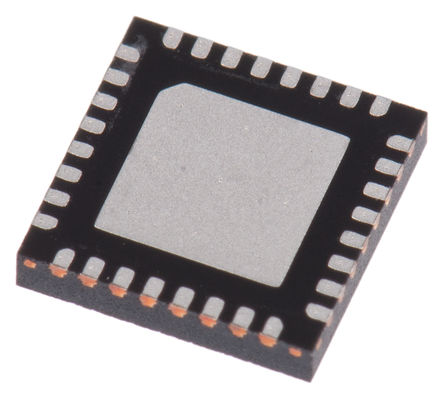

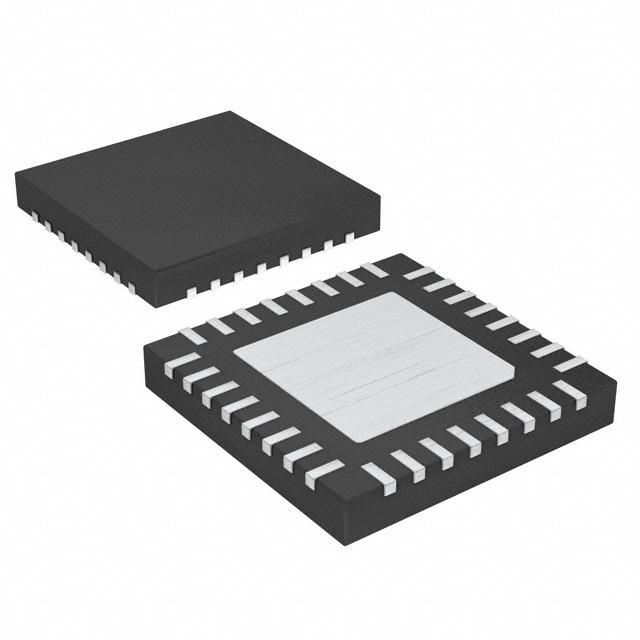

ATMEGA168PB-MU

8 位 PicoPower megaAVR 系列微控制器，Atmel此系列 megaAVR 微控制器具有 picoPower 技术 — 非常适合节能。 它们提供大量程序和数据内存，性能高达 20 MIPS。 **picoPower megaAVR 微控制器的特色和优点** •片上闪存 •SRAM •内部 EEPROM •SPI •TWI I²C •USART、USB、CAN 和 LIN 接口 •监控计时器 •精密振荡器 •GPIO 引脚 •ADC •DAC •内置温度传感器 •内部参考电压 •掉电检测器

The is a high-performance picoPower 8-bit AVR RISC-based Microcontroller combines 16kB ISP flash memory with read-while-write capabilities, 512byte EEPROM, 1kB SRAM, 27 general purpose I/O lines, 32 general-purpose working registers, three flexible timers/counters with compare modes, internal and external interrupts, USART with wake-up on start of transmission, a byte-oriented 2-wire serial interface, SPI serial port, 8-channel 10-bit A/D converter, programmable watchdog timer with internal oscillator, a 9 byte unique serial number and five software selectable power-saving modes. The device operates between 1.8 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1MIPS per MHz, balancing power consumption and processing speed. The device is manufactured using the Atmel high density non-volatile memory technology.

.

Advanced RISC architecture

.

Power-on reset and programmable brown-out detection

.

Internal calibrated RC oscillator

.

External and internal interrupt sources

.

Six sleep modes - idle, ADC noise reduction, power-save, power-down, standby and extended standby

.

131 Powerful instructions-most single clock cycle execution

.

32 x 8 General purpose working registers

.

Fully static operation

.

Up to 20MIPS throughput at 20MHz

.

On-chip 2-cycle multiplier

.

QTouch® library support

.

Programmable watchdog timer with separate on-chip oscillator

.

On-chip analog comparator

.

Interrupt and wake-up on pin change
