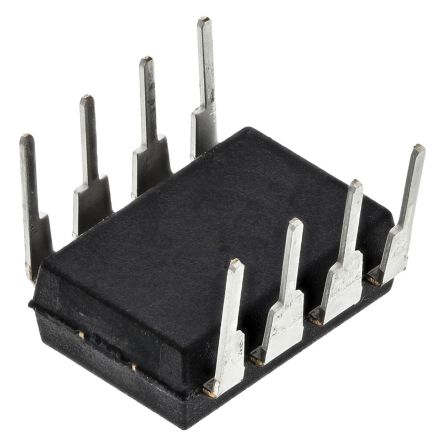

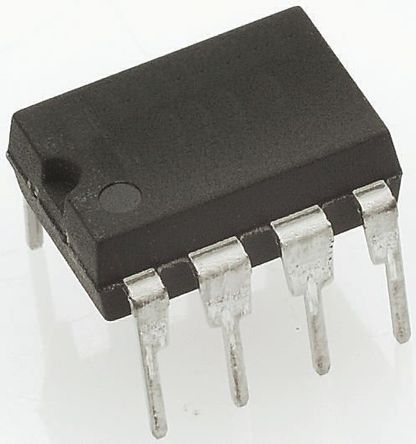

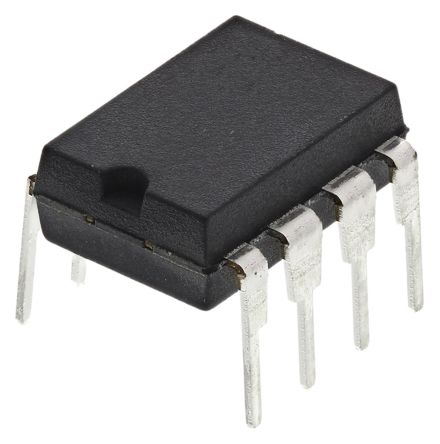

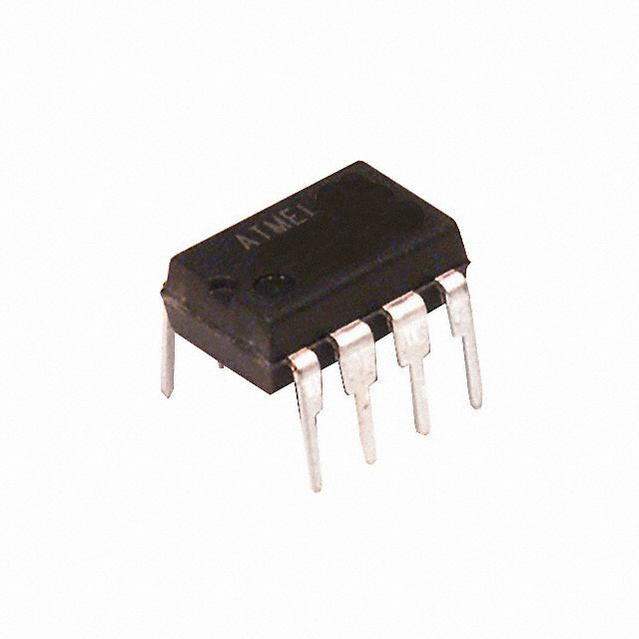

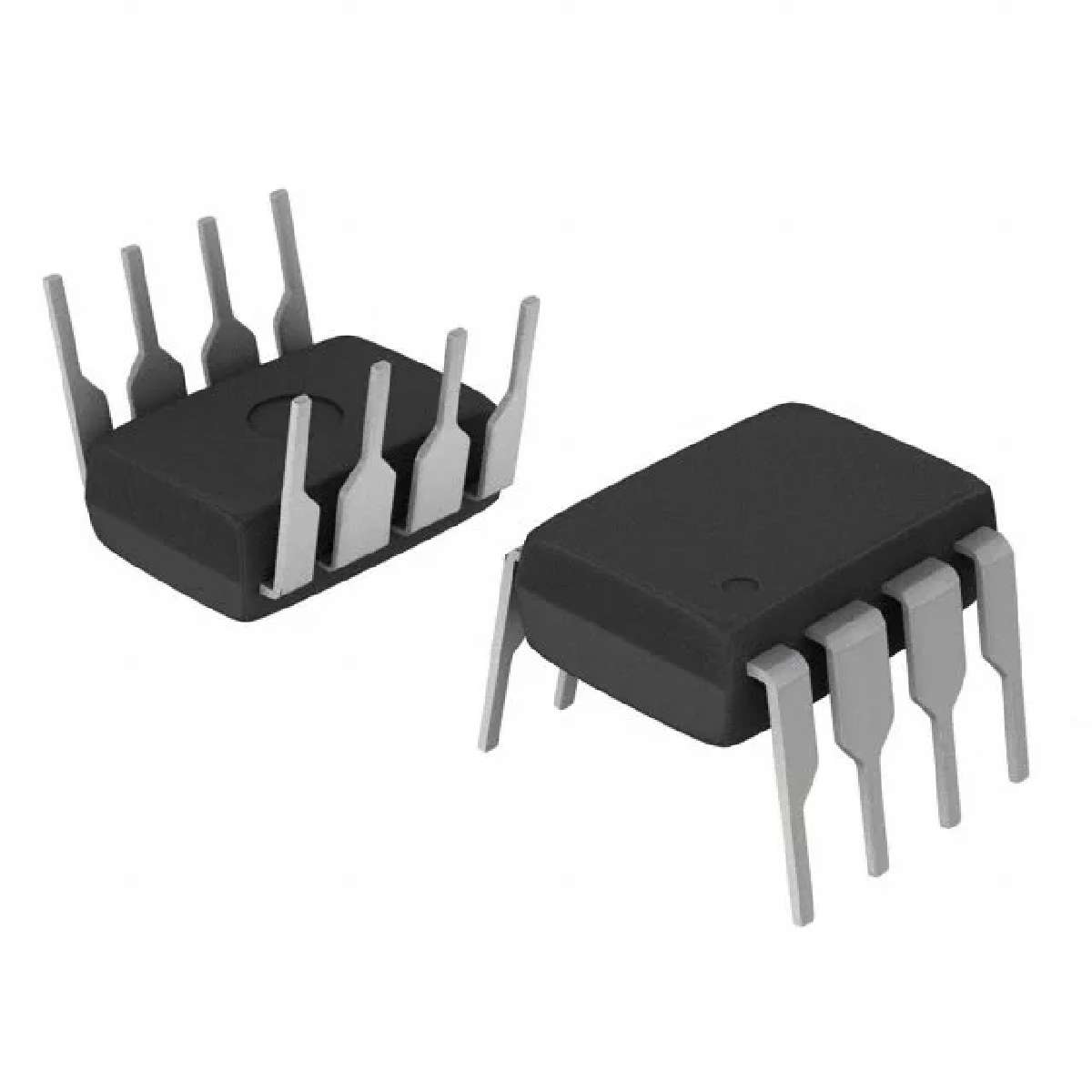

ATTINY25V-10PU

8 位 tinyAVR® 微控制器，AtmelAtmel 的 tinyAVR® 设备经优化处理，适用于需要性能、电源效率、易于使用且采用小型封装的应用。体积小巧，适用于注重尺寸的应用 电容式触摸 快速，且代码高效 高集成 1.8V 至 5.5V 工作 ATtiny43U ### AVR 微控制器，Atmel

The is a 8-bit high-performance low-power Atmel AVR RISC-based Microcontroller combines 2kB ISP flash memory, 128B EEPROM, 128B SRAM, 6 general purpose I/O lines, 32 general purpose working registers, one 8-bit timer/counter with compare modes, one 8-bit high speed timer/counter, USI, internal and external Interrupts, 4-channel 10-bit A/D converter, programmable watchdog timer with internal oscillator, three software selectable power saving modes and debugWIRE for on-chip debugging. The device achieves a throughput of 20 MIPS at 20MHz and operates between 2.7 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.

.

Advanced RISC architecture - 120 powerful instructions, most single clock cycle execution

.

Non-volatile program and data memories

.

Peripheral features - On-chip analogue comparator

.

debugWIRE on-chip debug system

.

In-System Programmable via SPI port

.

External and internal interrupt sources

.

Low power idle, ADC noise reduction and power-down modes

.

Enhanced power-on reset circuit

.

Programmable brown-out detection circuit

.

Internal calibrated oscillator
