AD7626BCPZ

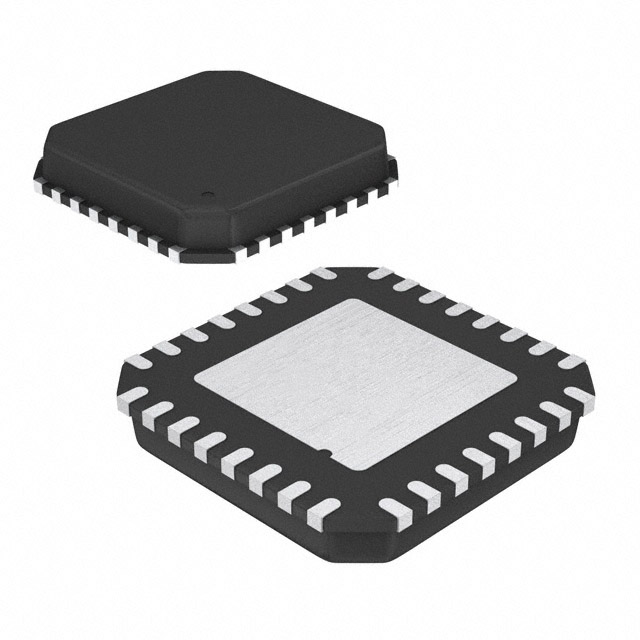

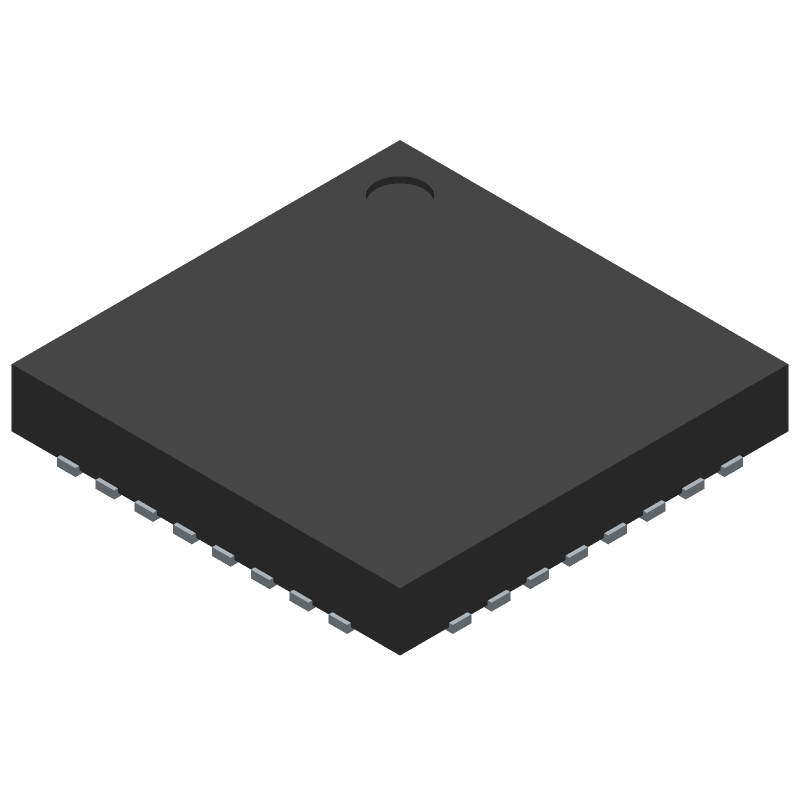

ANALOG DEVICES  AD7626BCPZ  模数转换器, 16 bit, 10 MSPS, 单, 2.37 V, 5.25 V, LFCSP

The is a PulSAR differential Analog-to-digital Converter ADC with charge redistribution successive approximation register based architecture. SAR architecture allows unmatched performance both in noise and in linearity. The converter contains a high speed 16-bit sampling ADC, an internal conversion clock and an internal buffered reference. On the CNV edge, it samples the voltage difference between the IN+ and IN- pins. The voltages on these pins swing in opposite phase between 0V and REF. The 4.096V reference voltage REF can be generated internally or applied externally. All converted results are available on a single low voltage differential signalling self clocked or echoed clock serial interface, reducing external hardware connections.

.

16-bit no missing codes

.

No latency/pipeline delay

.

Serial LVDS interface

.

Self clocked mode

.

Echoed clock mode

.

LVDS for conversion control
