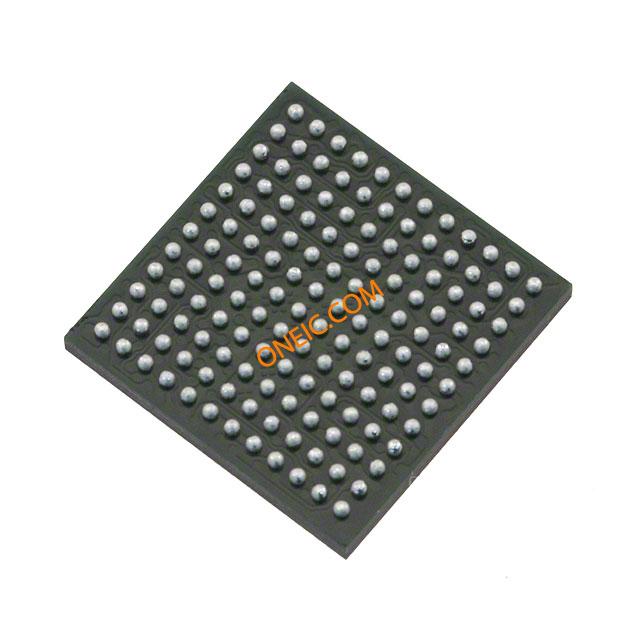

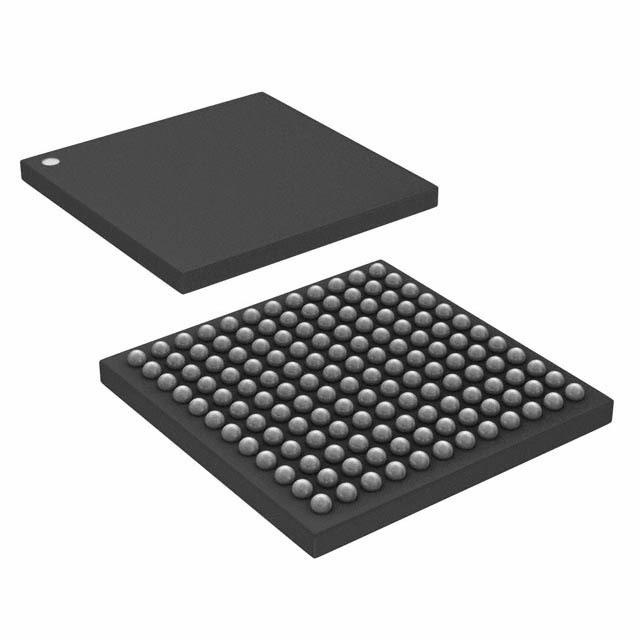

ANALOG DEVICES ADV212BBCZ-150 芯片, 视频编解码器, JPEG2000, 144CSPBGA
The is a Wavescale® JPEG 2000 Video Codec targeted for video and high bandwidth image compression applications that can benefit from the enhanced quality and features provided by the JPEG2000 J2K ISO/IEC15444-1 image compression standard. The part implements the computationally intensive operations of the JPEG2000 image compression standard and provides fully compliant code-stream generation for most applications. The dedicated video port of the ADV212 provides glueless connection to common digital video standards such as ITU-R BT.656, SMPTE 125M, SMPTE 293M 525p, ITU-R BT.1358 625p, SMPTE 274M 1080i or SMPTE 296M 720p. A variety of other high speed, synchronous pixel and video formats can also be supported by using the programmable framing and validation signals.
电源电压DC 1.43V min
供电电流 380 mA
通道数 1
位数 16
采样率 40.0 MHz
带宽 150 MHz
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 3.3 V
电源电压Min 1.5 V
安装方式 Surface Mount
引脚数 144
封装 BGA-144
长度 13 mm
宽度 13 mm
高度 1.21 mm
封装 BGA-144
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
制造应用 Communications & Networking, 成像, 成像, 视频和目视, Imaging, Video & Vision, 视频和目视, 通信与网络
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2013/06/20
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADV212BBCZ-150 ADI 亚德诺 | 当前型号 | 当前型号 |
