串行输入16位4毫安20毫安， 0毫安- 20毫安DAC Serial Input 16-Bit 4 mA-20 mA, 0 mA-20 mA DAC
By using Analog Devices" DAC converter, you"ll easily be able to recover important audio and video signals from a digital stream of data. This device is based on Delta-Sigma architecture. It has a current|voltage output. This device"s digital interface is serial 3-wire, spi, microwire. This DAC has a resolution of 16bit. This DAC has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device comes in tube packaging. This device uses a single power supply.
供电电流 4.20 mA
通道数 1
位数 16
耗散功率 176 mW
采样率 400 Hz
分辨率Bits 16.0
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 176 mW
数模转换数DAC 1
电源电压 12V ~ 32V
电源电压Max 32 V
电源电压Min 12 V
安装方式 Surface Mount
引脚数 24

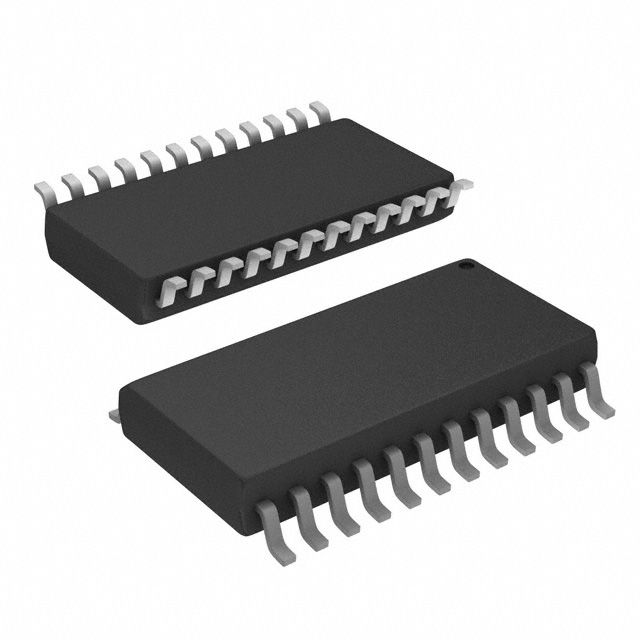

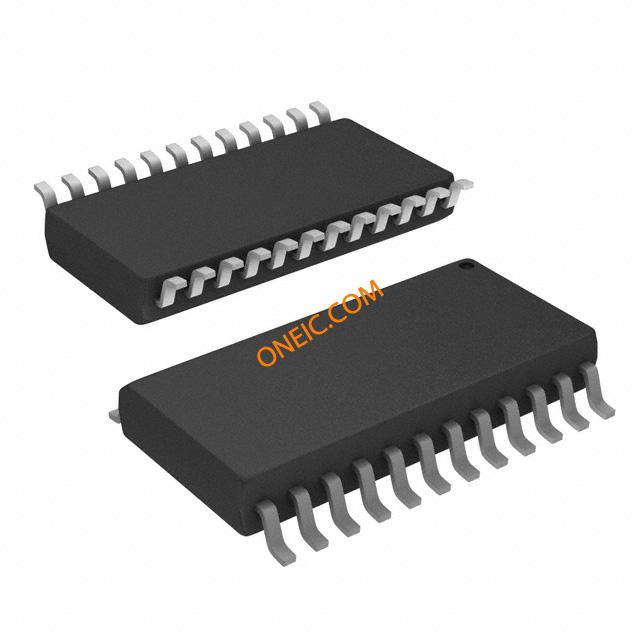

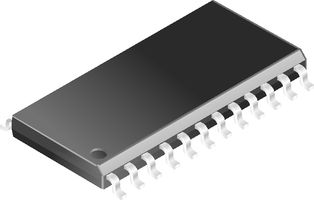

封装 SOIC-24
高度 2.35 mm
封装 SOIC-24
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
军工级 No
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
AD420AR-32 ADI 亚德诺 | 当前型号 | 当前型号 |
AD420ARZ-32-REEL 亚德诺 | 完全替代 | AD420AR-32和AD420ARZ-32-REEL的区别 |
AD420AR-32-REEL 亚德诺 | 完全替代 | AD420AR-32和AD420AR-32-REEL的区别 |
AD420ARZ-32 亚德诺 | 类似代替 | AD420AR-32和AD420ARZ-32的区别 |
