ADS1241E

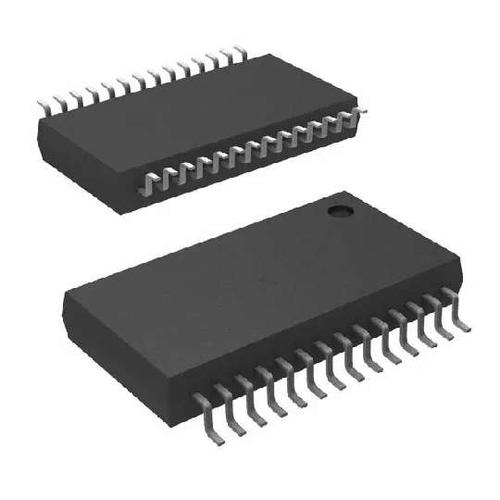

TEXAS INSTRUMENTS  ADS1241E  模数转换器, 24 bit, 15 SPS, 单, 2.7 V, 5.25 V, SSOP

The is a precision Analog-to-digital Converter ADC with 24-bit resolution operating from 2.7 to 5.25V supplies. This wide dynamic range, delta-sigma A/D converter provides up to 24-bit of no missing code performance and effective resolution of 21-bit. Internal buffering can be selected to provide very high input impedance for direct connection to transducers or low-level voltage signals. Burnout current sources are provided that allow for the detection of an open or shorted sensor. An 8-bit digital-to-analog converter DAC provides an offset correction with a range of 50% of the FSR. The Programmable Gain Amplifier PGA provides selectable gains of 1 to 128 with an effective resolution of 19-bit at a gain of 128. The A/D conversion is accomplished with a second-order delta-sigma modulator and programmable FIR filter that provides a simultaneous 50Hz and 60Hz notch. The reference input is differential and can be used for ratiometric conversion.

.

Input channels are multiplexed

.

Simultaneous 50 and 60Hz rejection

.

Single-cycle setting

.

Programmable data output rates

.

On-chip calibration

.

SPI™ compatible

.

Up to 8 input channels

.

Up to 8 data I/O

.

Green product and no Sb/Br
