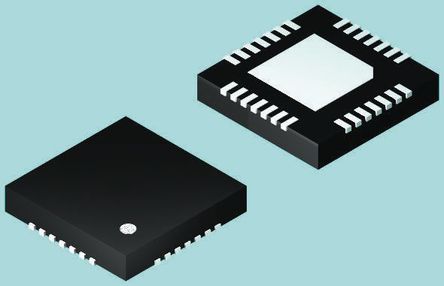

ATMEGA88PA-MMH

8 位 PicoPower megaAVR 系列微控制器，Atmel此系列 megaAVR 微控制器具有 picoPower 技术 — 非常适合节能。 它们提供大量程序和数据内存，性能高达 20 MIPS。 **picoPower megaAVR 微控制器的特色和优点** •片上闪存 •SRAM •内部 EEPROM •SPI •TWI I²C •USART、USB、CAN 和 LIN 接口 •监控计时器 •精密振荡器 •GPIO 引脚 •ADC •DAC •内置温度传感器 •内部参考电压 •掉电检测器### AVR 微控制器，Atmel

The is a 8-bit high-performance picoPower AVR RISC-based Microcontroller combines 8kB ISP flash memory with read-while-write capabilities, 512B EEPROM, 1kB SRAM, 23 general purpose I/O lines, 32 general purpose working registers, three flexible timer/counters with compare modes, internal and external interrupts, serial programmable USART, a byte-oriented 2-wire serial interface, SPI serial port, 6-channel 10-bit A/D converter, programmable watchdog timer with internal oscillator and five software selectable power saving modes. The device operates between 1.8 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.

.

Advanced RISC architecture - On-chip 2-cycle multiplier

.

High endurance, non-volatile memory segments

.

QTouch® library support - Capacitive touch buttons, sliders and wheels

.

Peripheral features - Real time counter with separate oscillator

.

Temperature measurement - Programmable serial USART

.

Power-on reset POR and programmable brown-out detection

.

Internal calibrated oscillator

.

External and internal interrupt sources

.

Six sleep modes - Idle, ADC noise reduction, power-save, power-down, standby and extended standby

.

-40 to +85°C Industrial operating temperature range
