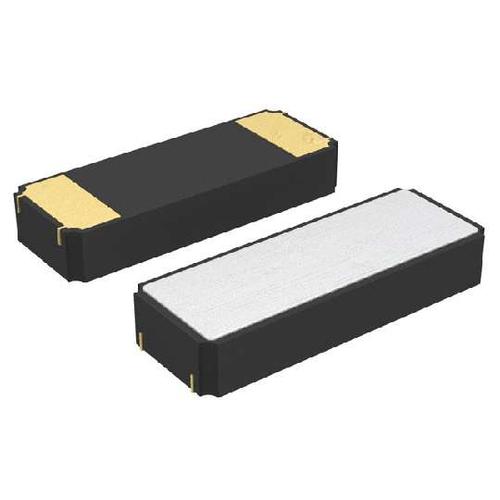

ABRACON ABS10-32.768KHZ-7-T 晶振, 32.768KHZ, 7pF, SMD
The is a 4.9 x 1.8 x 1mm 20ppm surface-mount low profile Crystal features ceramic offers excellent environmental and heat resistance ideal for high density circuit boards. The ABS10 crystal for use with the wireless communications, PDA and palm pilots, wide range in communication, measuring equipment and industrial applications.
- .
- Flexural tuning fork operation mode
- .
- 70kR Maximum equivalent series resistance
- .
- 1pF Typical shunt capacitance
- .
- 1µW Maximum drive level
- .
- 500MR at 100VDC Minimum insulation resistance
频率 32.768 kHz
频率容差 ±20 ppm
绝缘电阻 500 MΩ
电容 7 pF
等效串联电阻ESR 70 kΩ
负载电容 7 pF
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 4.9 mm
宽度 1.8 mm
高度 1 mm
封装 SMD-2
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Test & Measurement, 商业, 时钟与计时, Industrial, Clock & Timing, 通信与网络, Clock & Timing, Communications & Networking, Test & Measurement, Commercial, , 测试与测量
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
