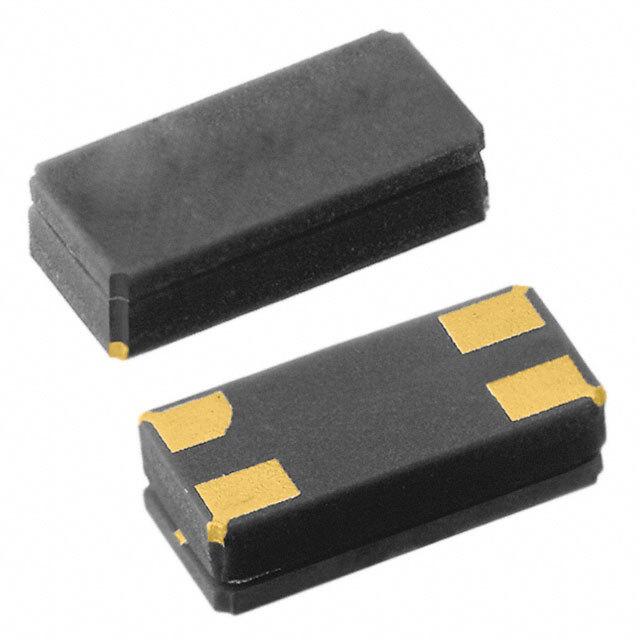

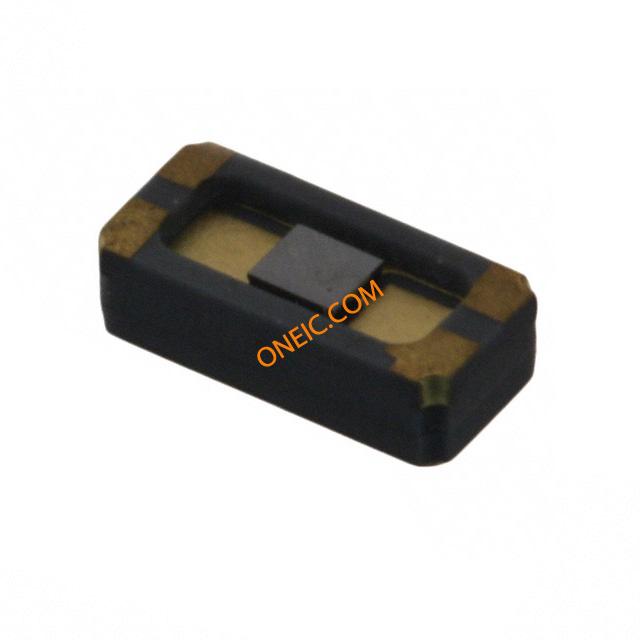

ABRACON ASH7KW-32.768KHZ-L-T 振荡器, 32.768KHZ, 3.2 X 1.5MM, LVCMOS
The ASH7KW series low power SMD Crystal Oscillator works at frequency of 32.768kHz. It is suitable for use in factory automation, PC server, W-LAN/GPS chipset, general purpose clock generator for digital systems, clock drivers for real time clocks, timekeeping in network servers and computers, electricity, gas and water metering, portable field communication, mobile phone, clock and data recovery, CCD clock for VTR camera, portable MP3 players and games.
- .
- Ultra-miniature size
- .
- Low voltage operation
- .
- Low current consumption
- .
- VDD controls the output amplitude
- .
- Moisture sensitivity level 1
频率 32.768 kHz
频率稳定度 ±20 ppm
供电电流 1.8 µA
负载电容 15 pF
上升时间 70 ns
下降时间 70 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 4
封装 SMD-4
高度 1 mm
封装 SMD-4
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Communications & Networking, Industrial, 通信与网络, 自动化与过程控制, Portable Devices, Computers & Computer Peripherals, 计量, 工业, Metering, Automation & Process Control, 时钟与计时, 便携式器材, Clock & Timing, Consumer Electronics, 计算机和计算机周边, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ASH7KW-32.768KHZ-L-T Abracon | 当前型号 | 当前型号 |
OV-7604-C7 Micro Crystal | 功能相似 | ASH7KW-32.768KHZ-L-T和OV-7604-C7的区别 |
