64位向上/向下控制数字电位器 64-Position Up/Down Control Digital Potentiometer
Product Details
The AD5227 is Analog Devices’ latest 64-step up/down control digital potentiometer1. This device performs the same electronic adjustment function as a 5 V potentiometer or variable resistor. Its simple 3-wire up/down interface allows manual switching or high speed digital control. The AD5227 presets to midscale at power-up. When CS is enabled, the devices changes step at every clock pulse. The direction is determined by the state of the U/D pin see . The interface is simple to activate by any host controller, discrete logic, or manually with a rotary encoder or pushbuttons. The AD5227’s 64-step resolution, small footprint, and simple interface enable it to replace mechanical potentiometers and trimmers with typically 6× improved resolution, solid-state reliability, and design layout flexibility, resulting in a considerable cost savings in end users’ systems.
The AD5227 is available in a compact thin SOT-23-8 TSOT-8 Pb-free package. The part is guaranteed to operate over the automotive temperature range of −40°C to +105°C.
Users who consider EEMEM potentiometers should refer to some recommendations in the Applications section.
**Applications**
* Mechanical potentiometer and trimmer replacements
* LCD backlight, contrast, and brightness controls
* Portable electronics level adjustment
* Programmable power supply
* Digital trimmer replacements
* Automatic closed-loop control
1RWA increments if RWB decrements and vice versa.
### Features and Benefits
35 ppm/°C
3 μA max
2.9 mm × 3 mm Pb-free package
容差 ±20 %
供电电流 0.0004 mA
电路数 1
针脚数 64
时钟频率 50.0MHz max
电阻 50 kΩ
阻值偏差 ±20 %
静态电流 400 nA
工作温度Max 105 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 5.5V
安装方式 Surface Mount
引脚数 8

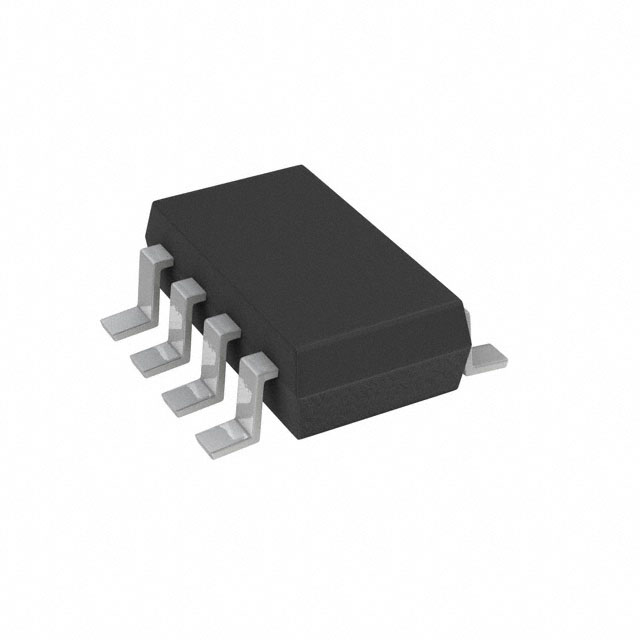

封装 TSOT-23-8
长度 2.9 mm
宽度 1.6 mm
高度 0.87 mm
封装 TSOT-23-8
工作温度 -40℃ ~ 105℃
温度系数 ±35 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD5227BUJZ50-RL7 ADI 亚德诺 | 当前型号 | 当前型号 |
AD5227BUJZ50-R2 亚德诺 | 类似代替 | AD5227BUJZ50-RL7和AD5227BUJZ50-R2的区别 |
MCP4012T-503E/CH 微芯 | 功能相似 | AD5227BUJZ50-RL7和MCP4012T-503E/CH的区别 |
MCP4013T-503E/CH 微芯 | 功能相似 | AD5227BUJZ50-RL7和MCP4013T-503E/CH的区别 |
