50KΩ),Analog Devices### 数字电位计 - Analog Devices
数字电位计(单,50KΩ),Analog Devices
### 数字电位计 - Analog Devices
得捷:
IC DGT POT 50KOHM 1024TAP 10MSOP
立创商城:
AD5272BRMZ-50
欧时:

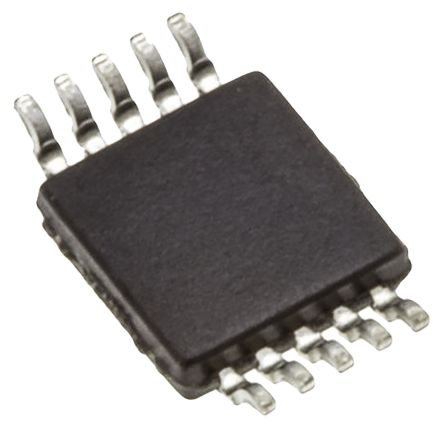

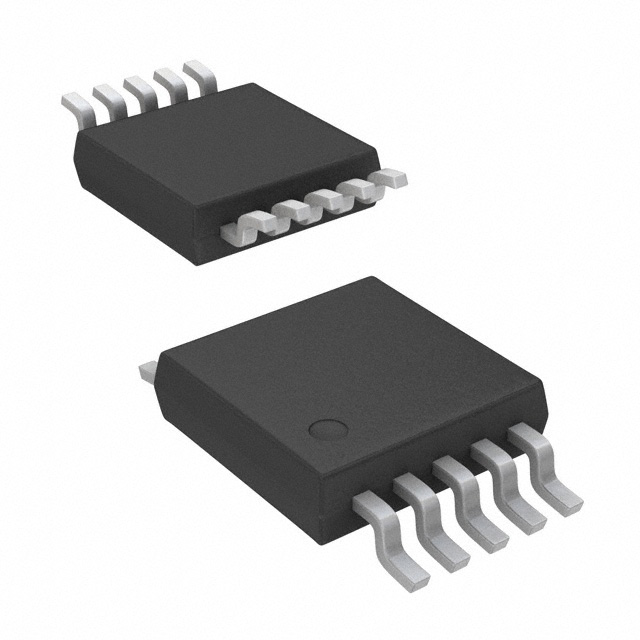

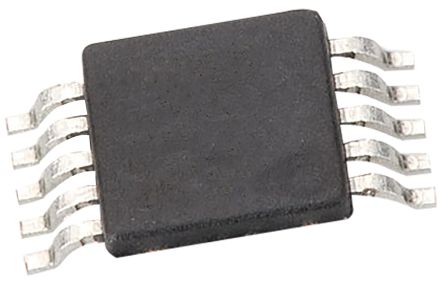

Analog Devices AD5272BRMZ-50 50kΩ 1024位置 数字电位计 , 支持多种控制接口, 10引脚 MSOP封装
e络盟:
非易失性数字电位器, 50 kohm, 单, I2C, 串行, ± 1%, 2.7 V
艾睿:
Digital Potentiometer 50kOhm 1024POS Non-Volatile Linear 10-Pin MSOP Tube
Chip1Stop:
Digital Potentiometer 1024POS 50kOhm Single 10-Pin MSOP
Verical:
Digital Potentiometer 50kOhm 1024POS Non-Volatile 10-Pin MSOP Tube
罗切斯特:
AD5272 - 1024-Position, one Percent Resistor TOL Error, I2C INT and 50-TP MEM Digital Rheostat
DeviceMart:
IC RHEOSTAT 5V 50TP 1024 10MSOP
容差 ±1 %
供电电流 0.5 mA
电路数 1
针脚数 1024
电阻 50 kΩ
阻值偏差 ±1 %
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 5 V
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 10

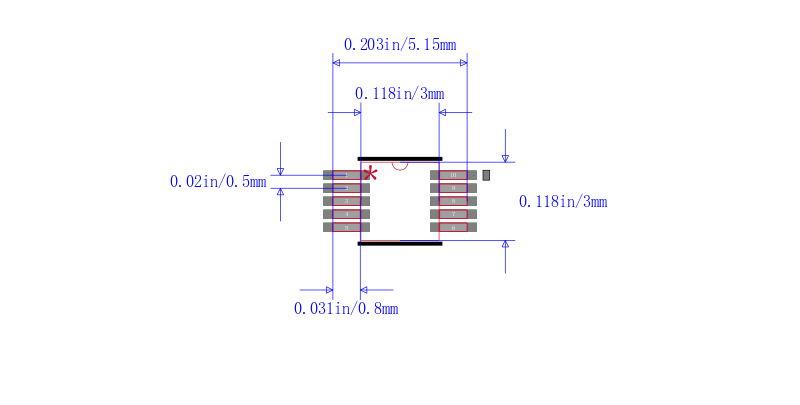

封装 MSOP-10
长度 3.1 mm
宽度 3.1 mm
高度 0.95 mm
封装 MSOP-10
工作温度 -40℃ ~ 125℃
温度系数 ±5 ppm/℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD5272BRMZ-50 ADI 亚德诺 | 当前型号 | 当前型号 |
AD5272BRMZ-50-RL7 亚德诺 | 完全替代 | AD5272BRMZ-50和AD5272BRMZ-50-RL7的区别 |
