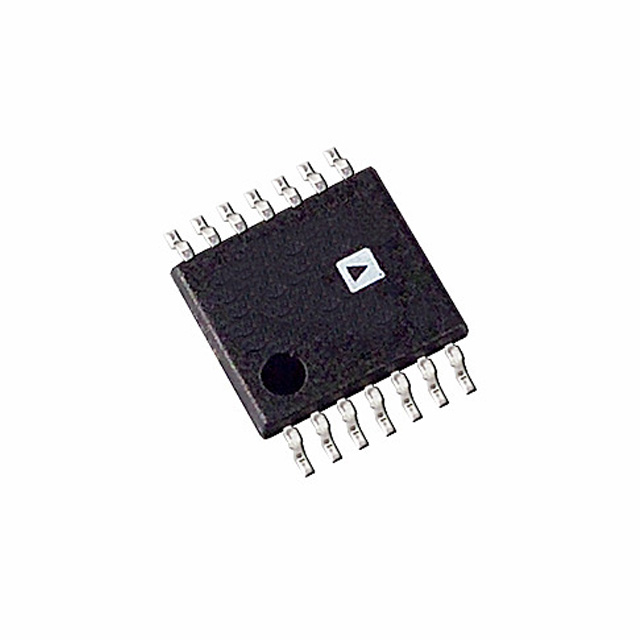

AD7376ARUZ10-R7

128位数字电位计 128-Position Digital Potentiometer

Product Details

The AD7376 is one of the few high voltage, high performance digital potentiometers

.

* on the market. This device can be used as a programmable resistor or resistor divider. The AD7376 performs the same electronic adjustment function as mechanical potentiometers, variable resistors, and trimmers with enhanced resolution, solid-state reliability, and programmability. With digital rather than manual control, the AD7376 provides layout flexibility and allows closed-loop dynamic controllability.

The AD7376 features sleep-mode programmability in shutdown that can be used to program the preset before device activation, thus providing an alternative to costly EEPROM solutions.

The AD7376 is available in 14-lead TSSOP and 16-lead wide body SOIC packages in 10 kΩ, 50 kΩ, and 100 kΩ options. All parts are guaranteed to operate over the −40°C to +85°C extended industrial temperature range.

**Applications**

.

High voltage DAC

.

Programmable power supply

.

Programmable gain and offset adjustment

.

Programmable filters, delays

.

Actuator control

.

Audio volume control

.

Mechanical potentiometer replacement

**The terms digital potentiometer and RDAC are used interchangeably.

### Features and Benefits

.

128 positions

.

10 kΩ, 50 kΩ, 100 kΩ

.

20 V to 30 V single-supply operation

.

±10 V to ±15 V dual-supply operation

.

3-wire SPI®-compatible serial interface

.

THD 0.006% typical

.

Programmable preset

.

Power shutdown: less than 1 μA

.

iCMOS™ process technology
