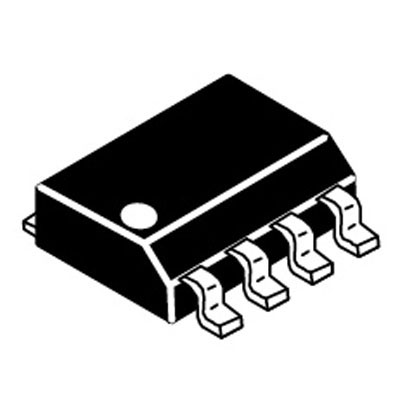

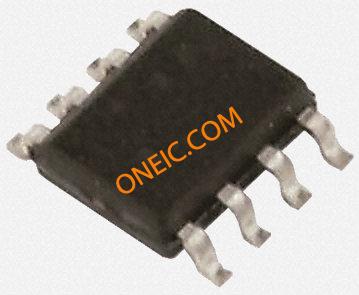

ANALOG DEVICES AD654JRZ 电压频率转换器, 500 kHz, 0Hz 至 500kHz, 0.03 %, ± 5V 至 ± 18V, SOIC, 8 引脚
电压/频率转换器,Analog Devices
这种经济电压至频率转换器具有最低电源要求,同时可提供宽满刻度频率范围。 具有出色的温度特性和稳定性。
欧时:
Analog Devices AD654JRZ 500kHz 电压-频率转换器, 非同步, ±0.4%FSR, 8引脚 SOIC封装
得捷:
IC V/F CONV 500KHZ 8SOIC
立创商城:
AD654JRZ
e络盟:
电压频率转换器, 500 kHz, 0Hz 至 500kHz, 0.03 %, ± 5V 至 ± 18V, SOIC, 8 引脚
艾睿:
VFC Non-Sync 500kHz 8-Pin SOIC N Tube
Jameco:
Voltage to Frequency Converters Non Sync 500kHz 8 Pin SOIC N
安富利:
The AD654 is a monolithic V/F converter consisting of an input amplifier, a precision oscillator system, and a high current output stage. A single RC network is all that is required to set up any full scale FS frequency up to 500 kHz and any FS input voltage up to ± 30 V. Linearity error is only 0.03% for a 250 kHz FS, and operation is guaranteed over an 80 dB dynamic range. The overall temperature coefficient excluding the effects of external components is typically ±50 ppm/°C. The AD654 operates from a single supply of 5 V to 36 V and consumes only 2.0 mA quiescent current.The low drift 4 µV/°C typ input amplifier allows operation directly from small signals such as thermocouples or strain gauges while offering a high 250 MΩ input resistance. Unlike most V/F converters, the AD654 provides a square-wave output, and can drive up to 12 TTL loads, optocouplers, long cables, or similar loads.
Chip1Stop:
VFC Non-Sync 500kHz 8-Pin SOIC N Tube
TME:
Integrated circuit: U/f converter; 20mA; 5÷36VDC; SO8
Verical:
VFC Non-Sync 500kHz 8-Pin SOIC N Tube
罗切斯特:
AD654 - Voltage to Frequency Converter, 0.5MHz, Bipolar, PDSO8
DeviceMart:
VFC Voltage-to-Frequency ConverterLow Cost Monolithic ,, Non-Sync 500KHz 8-Pin SOIC
Win Source:
IC V-F CONVERTER MONO 8SOIC
频率 500 kHz
输出电流 20 mA
供电电流 2.50 mA
针脚数 8
时钟频率 500kHz max
带宽 0.5 MHz
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 5.36 VDC
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
长度 5 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 Signal Processing, 信号处理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2013/06/20
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD654JRZ ADI 亚德诺 | 当前型号 | 当前型号 |
AD654JRZ-REEL7 亚德诺 | 完全替代 | AD654JRZ和AD654JRZ-REEL7的区别 |
AD654JRZ-REEL 亚德诺 | 完全替代 | AD654JRZ和AD654JRZ-REEL的区别 |
AD654JR 亚德诺 | 完全替代 | AD654JRZ和AD654JR的区别 |
