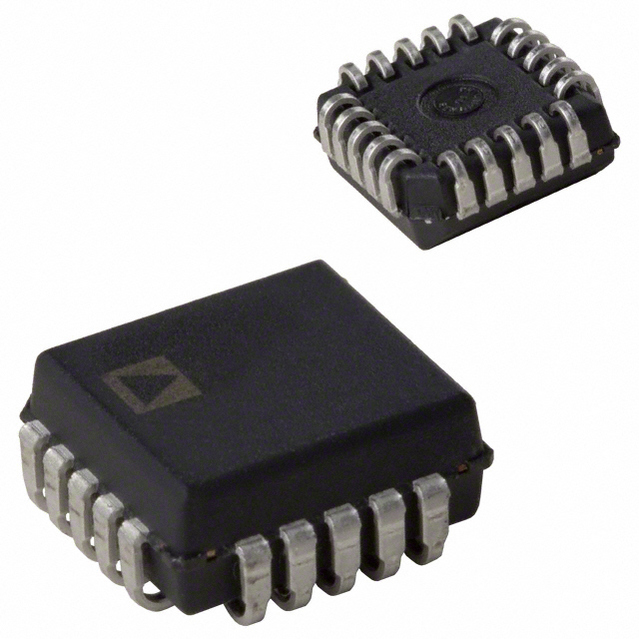

AD650JPZ图片1

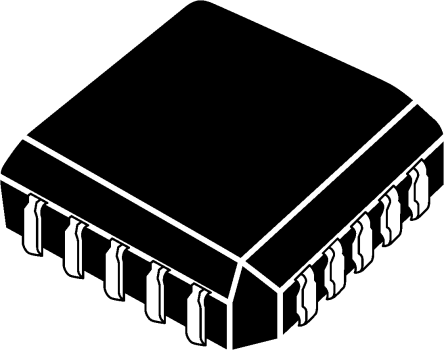

AD650JPZ图片2
AD650JPZ图片3
AD650JPZ图片4
AD650JPZ图片5
AD650JPZ图片6
AD650JPZ图片7
AD650JPZ图片8
AD650JPZ图片9
AD650JPZ图片10
AD650JPZ图片11
AD650JPZ图片12
AD650JPZ图片13
AD650JPZ图片14
AD650JPZ图片15
AD650JPZ图片16
AD650JPZ图片17
AD650JPZ图片18
AD650JPZ图片19
AD650JPZ图片20
AD650JPZ概述

ANALOG DEVICES  AD650JPZ  电压频率转换器, 1 MHz, 0Hz 至 1MHz, 0.1 %, ± 9V 至 ± 18V, PLCC, 20 引脚

电压/频率转换器,Analog Devices

这种经济电压至频率转换器具有最低电源要求,同时可提供宽满刻度频率范围。 具有出色的温度特性和稳定性。


欧时:
VFC/FVC Non-Sync 1MHz 20-Pin PLCC


得捷:
IC F/V & V/F CONV 1MHZ 20PLCC


立创商城:
AD650JPZ


贸泽:
电压频率转换及频率电压转换 IC V/F CONVERTER


艾睿:
VFC/FVC Non-Sync 1MHz 20-Pin PLCC Tube


安富利:
The AD650 V/F/V voltage-to-frequency or frequency-to-voltage converter provides a combination of high frequency operation and low nonlinearity previously unavailable in monolithic form. The inherent monotonicity of the V/F transfer function makes the AD650 useful as a high-resolution analog-to-digital converter. A flexible input configuration allows a wide variety of input voltage and current formats to be used, and an open-collector output with separate digital ground allows simple interfacing to either standard logic families or opto-couplers. The linearity error of the AD650 is typically 20 ppm 0.002% of full scale and 50 ppm 0.005% maximum at 10 kHz full scale. This corresponds to approximately 14-bit linearity in an analogto-digital converter circuit. Higher full-scale frequencies or longer count intervals can be used for higher resolution conversions. The AD650 has a useful dynamic range of six decades allowing extremely high resolution measurements. Even at 1 MHz full scale, linearity is guaranteed less than 1000 ppm 0.1% on the AD650KN, BD, and SD grades. In addition to analog-to-digital conversion, the AD650 can be used in isolated analog signal transmission applications, phased-locked loop circuits, and precision stepper motor speed controllers. In the F/V mode, the AD650 can be used in precision tachometer and FM demodulator circuits. The input signal range and full-scale output frequency are userprogrammable with two external capacitors and one resistor. Input offset voltage can be trimmed to zero with an external potentiometer. The AD650JN and AD650KN are offered in plastic 14-lead DIP packages. The AD650JP is available in a 20-lead plastic leaded chip carrier PLCC. Both plastic packaged versions of the AD650 are specified for the commercial temperature range 0Ѓ to 70Ѓ. For industrial temperature range ?25Ѓ to +85Ѓ applications, the AD650AD and AD650BD are offered in ceramic packages. The AD650SD is specified for the full ?55Ѓ to +125Ѓ extended temperature range.


Chip1Stop:
VFC/FVC Non-Sync 1MHz 20-Pin PLCC Tube


Verical:
VFC/FVC Non-Sync 1MHz 20-Pin PLCC Tube


Newark:
# ANALOG DEVICES  AD650JPZ  Voltage to Frequency Converter, Frequency / Voltage + Voltage / Frequency, 1 MHz, 0Hz to 1MHz


罗切斯特:
VFC/FVC Non-Sync 1MHz 20-Pin PLCC Tube


AD650JPZ中文资料参数规格
技术参数

频率 1 MHz

供电电流 8.00 mA

针脚数 20

工作温度Max 70 ℃

工作温度Min 0 ℃

封装参数

安装方式 Surface Mount

引脚数 20

封装 PLCC-20

外形尺寸

长度 9.04 mm

宽度 9.04 mm

高度 3.68 mm

封装 PLCC-20

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 EAR99

数据手册

AD650JPZ引脚图与封装图
AD650JPZ引脚图
AD650JPZ封装图
AD650JPZ电路图
AD650JPZ封装焊盘图
在线购买AD650JPZ
型号: AD650JPZ
制造商: ADI 亚德诺
描述:ANALOG DEVICES  AD650JPZ  电压频率转换器, 1 MHz, 0Hz 至 1MHz, 0.1 %, ± 9V 至 ± 18V, PLCC, 20 引脚
替代型号AD650JPZ
型号/品牌 代替类型 替代型号对比

AD650JPZ

ADI 亚德诺

当前型号

当前型号

AD652JPZ

亚德诺

类似代替

AD650JPZ和AD652JPZ的区别

AD652JPZ-REEL7

亚德诺

类似代替

AD650JPZ和AD652JPZ-REEL7的区别

AD652KPZ-REEL

亚德诺

类似代替

AD650JPZ和AD652KPZ-REEL的区别
