AD537KH

集成电路电压频率转换器 Integrated Circuit Voltage-to-Frequency Converter

Product Details

The AD537 is a monolithic V-F converter consisting of an input amplifier, a precision oscillator system, an accurate internal reference generator and a high current output stage. Only a single external RC network is required to set up any full-scale F.S. frequency up to 100 kHz and any F.S. input voltage up to ±30 V. Linearity error is as low as ±0.05% for 10 kHz F.S., and operation is guaranteed over an 80 dB dynamic range. The overall temperature coefficient excluding the effects of external components is typically ±30 ppm/°C. The AD537 operates from a single supply of 5 V to 36 V and consumes only 1.2 mA quiescent current.

A temperature-proportional output, scaled to 1.00 mV/K, enables the circuit to be used as a reliable temperature-to-frequency converter; in combination with the fixed reference output of 1.00 V, offset scales such as 0°C or 0°F can be generated.

The low drift 1µV/°C typ input amplifier allows operation directly from small signals e.g., thermocouples or strain gages while offering a high 250 MOhm input resistance. Unlike most V-F converters, the AD537 provides a square-wave output, and can drive up to 12 TTL loads, LEDs, very long cables, etc.

The excellent temperature characteristics and long-term stability of the AD537 are guaranteed by the primary bandgap reference generator and the low T.C. silicon chromium thin film resistors used throughout.

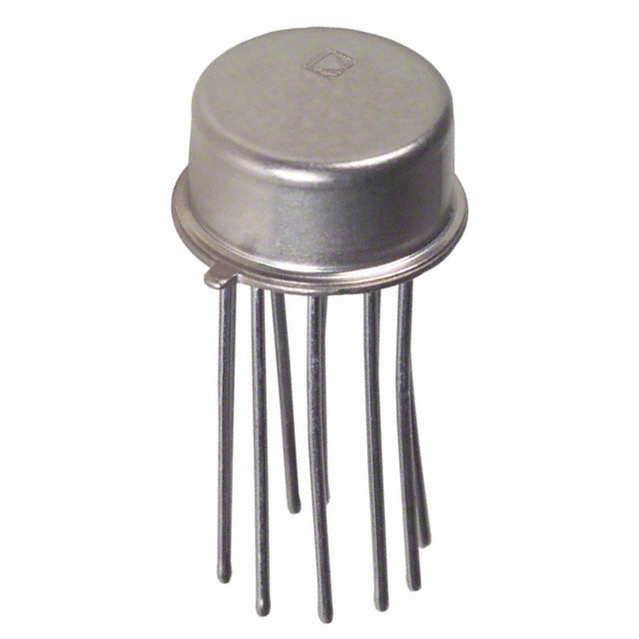

The device is available in either a TO-116 ceramic DIP or a TO-100 metal can; both are hermetically sealed packages.

The AD537 is available in three performance/temperature grades; the J and K grades are specified for operation over the 0°C to +70°C range while the AD537S is specified for operation over the extended temperature range, -55°C to +125°C.

### Features and Benefits

.

Low Cost A-D Conversion

.

Versatile Input Amplifier

Positive or Negative Voltage Modes

Negative Current Mode

High Input Impedance, Low Drift

.

Single Supply, 5 V to 36 V

.

Linearity: ±0.05% FS

.

Low Power: 1.2 mA Quiescent Current

.

Full-Scale Frequency up to 100 kHz

.

1.00 V Reference

.

Thermometer Output 1 mV/K

.

F-V Applications

.

MIL-STD-883 Compliant Versions Available
