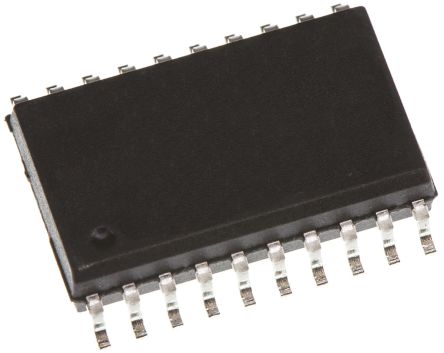

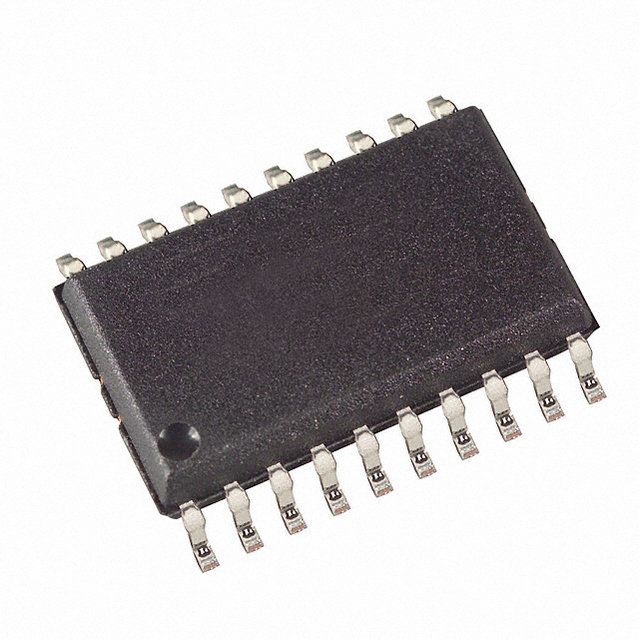

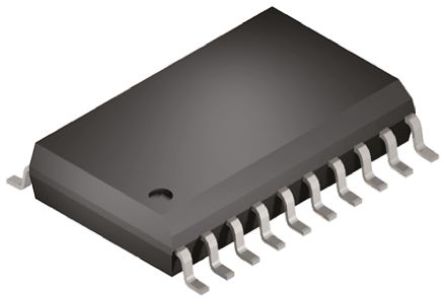

AT89S2051-24SU

8051 体系结构闪存 ISP（系统内可编程）微控制器，AtmelAtmel 可提供闪存 8051 微控制器，具有系统内可编程 ISP，可在并行或串行模式中采用适当的软件进行编程。### 8051 体系结构微控制器，AtmelAtmel 的 8 位微控制器 MCU 基于 8051 指令集，结合久经考验的技术和最新特征及功能，所有均具有高级闪存。### 设备系列单周期芯 闪存 ISP（系统内可编程） 闪存（可重新编程） CAN 网络 MCU USB MCU ROMless

The is a low-voltage, high-performance 8-bit CMOS Microcontroller with 2kB of In-system programmable ISP flash program memory. The device is manufactured using high-density nonvolatile memory technology and is compatible with the industry-standard MCS-51 instruction set. By combining a versatile 8-bit CPU with flash on a monolithic chip, the AT89S2051 is a powerful microcontroller which provides a highly-flexible solution to many embedded control applications. It is designed with static logic for operation down to zero frequency and supports two software-selectable power saving modes. The idle mode stops the CPU while allowing the RAM, timer/counters, serial port and interrupt system to continue functioning. The power-down mode saves the RAM contents but freezes the disabling all other chip functions until the next external interrupt or hardware reset.

.

Compatible with MCS®51 products

.

0 to 24MHz Fully static operation

.

Two-level program memory lock

.

256 x 8-bit Internal RAM

.

15 Programmable I/O lines

.

Two 16-bit timers/counters

.

Six interrupt sources

.

Programmable serial UART channel

.

Direct LED drive outputs

.

On-chip analog comparator with selectable interrupt

.

8-bit PWM Pulse-width modulation

.

Low power idle and power-down modes

.

Brownout reset

.

Enhanced UART serial port with framing error detection and automatic address recognition

.

Internal power-on reset

.

Interrupt recovery from power-down mode

.

Programmable and fuseable x2 clock option

.

Four-level enhanced interrupt controller

.

Power-off flag

.

Flexible programming byte and page modes
